Repair
Repair Price: $ 2,394.00
Purchase
CSL Part Number: 87963

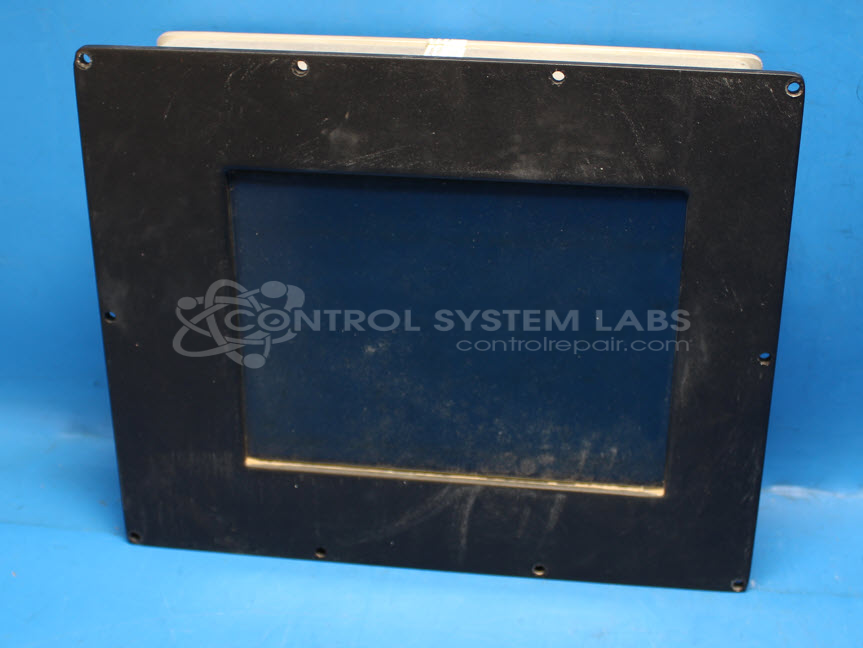

Product Overview: The L3Harris/Westwood 30699 Computer Interface Module is an operator control panel featuring an integrated LCD display with CCFL backlighting. It serves as the human-machine interface for industrial control systems, allowing operators to monitor status and input commands. The module connects via a rear multi-pin connector and requires specific pin grounding to activate the backlight. Commonly used in military and industrial generator control applications, it provides a boot-up operator screen for system interaction.
Category: Control Module
Manufacturer: L3Harris/Westwood
Manufacturer Part Number: 30699
Also Known As(AKA): 96-23752
Common Failures
Common issues reported with this product include network failure, no display on the LCD, and bent connector pins. Additionally, there are cases where the screen remains blank or occasionally displays a fuzzy image.
Repair Approach
Our evaluation process examines the ribbon cable to the display for physical damage such as bending or crimping. We also verify the ground connection in the backlight circuitry and test backlight components as part of our troubleshooting process.
Testing & Quality
Products undergo a series of tests to verify functionality, including boot testing and backlight operation. Items are also subjected to burn-in tests to evaluate reliability.
Repair your broken L3Harris/Westwood part
We can repair your L3Harris/Westwood model 30699 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
