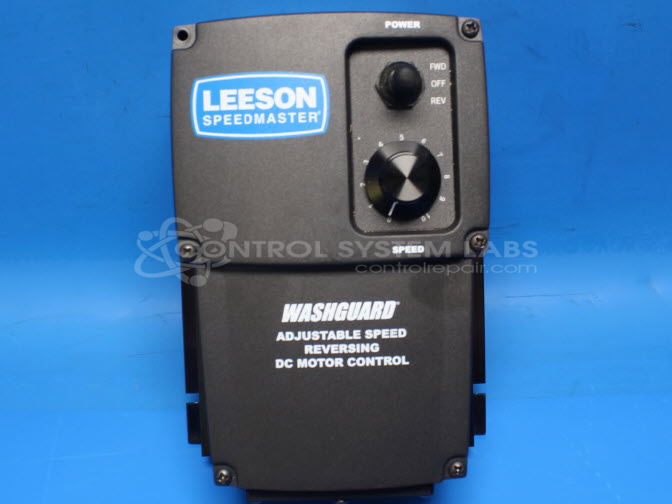

Home >  Leeson Electric 174107 Adjustable Speed Reversing DC Motor Control 1/4 -2 HP

Leeson Electric 174107 Adjustable Speed Reversing DC Motor Control 1/4 -2 HP

Repair

Repair Price: $ 384.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/68696/image_1920?unique=faab9c4
  • Condition

Purchase Price: $ 0.00 $ 0.00 384.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 85081
Product Overview: An adjustable speed reversing DC motor control rated for 1/4 to 2 HP, regulating speed and direction of DC motors in industrial equipment. Suited for washdown environments, it provides variable speed output and forward/reverse operation for conveyors, pumps, and processing machinery.
Category: DC Motor Controls
Manufacturer: Leeson Electric
Alternate Manufacturer Names: Regal Beloit
Manufacturer Part Number: 174107
Also Known As(AKA): Washguard
Other Synonyms: Regal Beloit

Common Failures

One common issue reported with this product is a loss of output due to incorrect voltage being supplied to the field circuit. This typically results in an open fuse and shorted diodes, which are essential components in protecting and maintaining the correct functionality of the unit.

Repair Approach

The repair process involves replacing the open fuse and shorted diodes. Once these components are replaced, the unit is tested to verify functionality. The repair work is performed by qualified technicians.

Testing & Quality

After repairs are completed, the unit undergoes thorough testing. This includes a functional test with a DC motor, followed by a minimum two-hour burn-in period. These steps are performed to verify that the repair has addressed the reported issue before the unit is returned.

Service and repair your broken Leeson Electric part


We can repair your Leeson Electric model 174107 in our facility. Let our skilled technicians get your Leeson Electric back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
