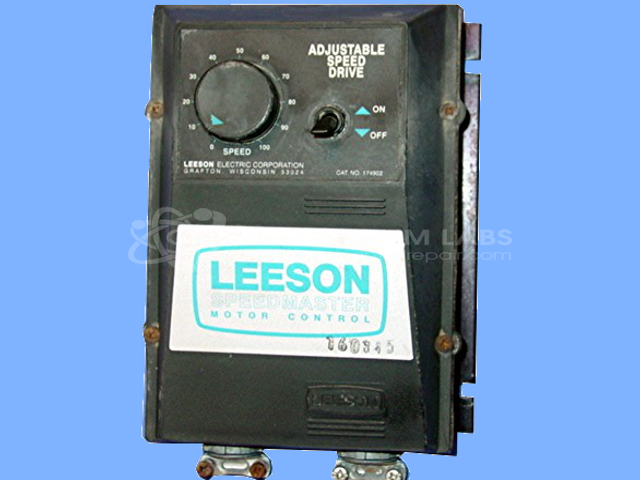

Leeson Electric 174902 Speedmaster FHP DC Motor Drive

Repair

Repair Price: $ 404.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/42105/image_1920?unique=96d17fe
  • Condition

Purchase Price: $ 0.00 $ 0.00 404.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 23013
Category: DC Motor Controls
Manufacturer: Leeson Electric
Manufacturer Part Number: 174902

Common Failures

Common issues reported include the unit not starting, control problems where the machine runs at full speed without control, and defective solder joints. These problems may stem from faulty components such as a programmable unijunction transistor (PUT) and opto-isolator, as well as poor solder connections or missing parts like a speed knob.

Repair Approach

Repairs may involve replacing defective components, such as the PUT, opto-isolator, lin trim pot, and on/off switch. Additionally, issues like cracked plastic cases may be resolved by reinforcing the structure through drilling new screw holes. In some cases, resoldering faulty joints can restore functionality.

Testing & Quality

Post-repair, units are thoroughly tested by running them for several hours to ensure correct operation. For instance, one repair involved running the control unit on a motor for an hour to verify the fix. Such rigorous testing helps ensure the product's performance meets expected standards.

Service and repair your broken Leeson Electric part


We can repair your Leeson Electric model 174902 in our facility. Let our skilled technicians get your Leeson Electric back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
