Lenze 33.8609-E.6D.64 8600 Inverter Motor Drive 100VAC 28.5A 50/60Hz In, 0-400VAC 32A 0-480Hz Out.rad
Repair
Repair Price: $ 2,644.00
Purchase
CSL Part Number: 22932

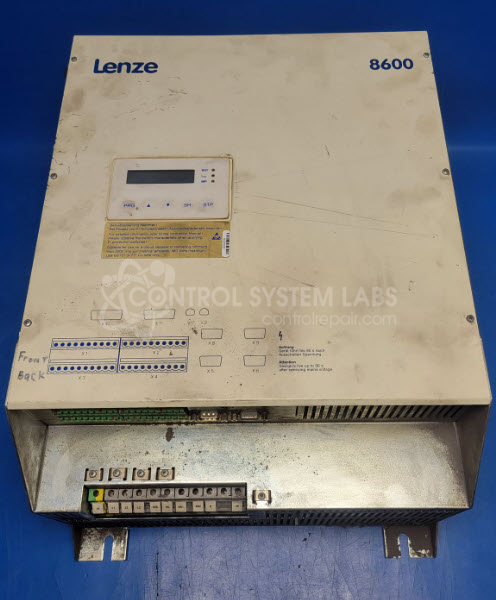

Product Overview: The Lenze 8600 Series inverter motor drive (model 33.8609-E.6D.64, also EVF8609-E) converts single-phase 100VAC input at 28.5A, 50/60Hz to variable three-phase output of 0-400VAC at 32A with adjustable frequency from 0-480Hz. This AC motor drive provides precise speed and torque control for industrial motors in paper processing, manufacturing automation, and material handling applications. It features regenerative braking capability and programmable acceleration/deceleration profiles for controlled motor operation.
Category: Motor Controls
Manufacturer: Lenze
Manufacturer Part Number: 33.8609-E.6D.64

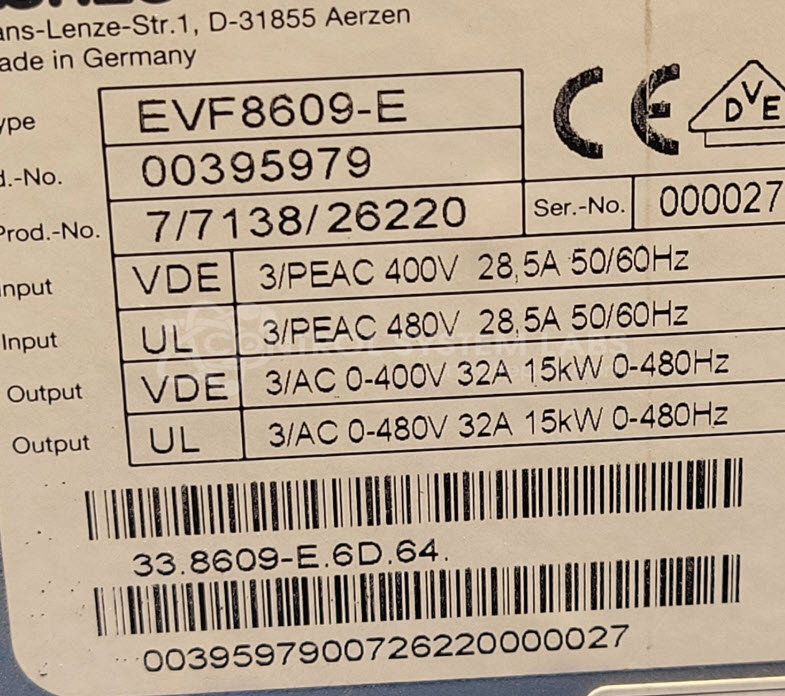

Also Known As(AKA): EVF8609-E
Repair Challenges
Common issues identified during evaluation include damaged diode components, cold solder joints, and a damaged current transducer on the PCB. Additionally, certain replacement parts are not available.
Repair Outcome
This unit was determined to be Beyond Economic Repair due to the unavailability of necessary parts such as current transducers and other specific components. Standard repair procedures and cleaning were performed but were insufficient to restore functionality. The unit was returned unrepaired.
Service and repair your broken Lenze part
We can repair your Lenze model 33.8609-E.6D.64 in our facility. Let our skilled technicians get your Lenze back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
