Lenze 431 430 DC Motor Control Card
Repair
Repair Price: $ 392.00
Purchase
CSL Part Number: 2068

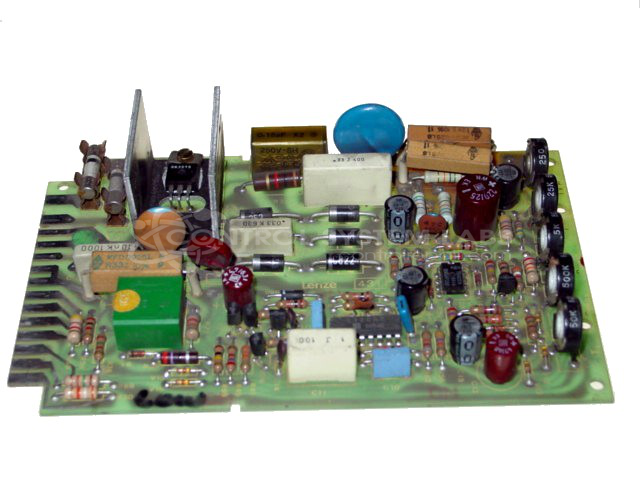

Product Overview: A plug-in DC motor control card that regulates armature output using SCR-based power control to drive DC motors. Common in industrial and paper machinery applications, it features edge-connector mounting, onboard fuses, and SCR output devices for speed and torque control.
Category: DC Motor Controls
Manufacturer: Lenze
Manufacturer Part Number: 431
Common Failures
The product has experienced several recurring issues, including shorted outputs, blown fuses, loose fuse holders, shorted semiconductor components, and erratic output. Burned or pitted edge contacts and open resistors have also been identified as common challenges.
Repair Approach
Repairs have been carried out by replacing damaged components such as fuses, capacitors, diodes, and resistors. Techniques like tightening or recrimping fuse holders, resurfacing edge connectors, and resoldering problematic areas have been employed to restore proper function.
Testing & Quality
Post-repair, extensive testing is performed to ensure reliability. The repaired units undergo diagnostics and are subjected to burn-in tests ranging from 30 minutes to several hours, confirming operation under full load conditions.
Service and repair your broken Lenze part
We can repair your Lenze model 431 in our facility. Let our skilled technicians get your Lenze back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
