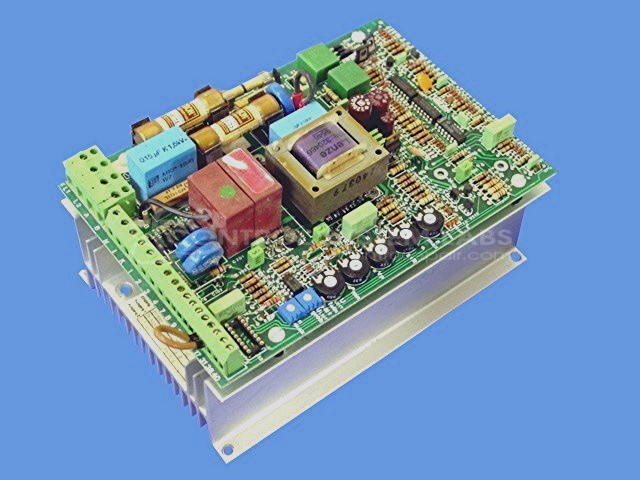

Lenze 472 5.4HP 16AMP DC Drive Board

Repair

Repair Price: $ 792.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/21902/image_1920?unique=d8d5731
  • Condition

Purchase Price: $ 0.00 $ 0.00 792.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 2071
Product Overview: A DC motor control drive board rated for 5.4 HP at 16 amps, used to regulate the speed and torque of DC motors. Features SCR and diode power modules with configurable AC input voltage jumpering. Commonly applied in paper processing and industrial drive systems.
Category: DC Motor Controls
Manufacturer: Lenze
Manufacturer Part Number: 472
Also Known As(AKA): 320378

Common Failures

Reported issues include blowing fuses in the main fuse panel and shorted outputs. Commonly affected components are the transistor, capacitor, SCR modules, and diode modules.

Repair Approach

Repairs may involve replacing damaged components such as the transistor, capacitor, SCR module, or diode module. After component replacement, the equipment is retested to verify proper operation.

Testing & Quality

All repairs undergo thorough testing, including full-load operation for one hour and diagnostic checks, to verify operational reliability.

Service and repair your broken Lenze part


We can repair your Lenze model 472 in our facility. Let our skilled technicians get your Lenze back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
