Repair
Repair Price: $ 452.00
Purchase
CSL Part Number: 8099

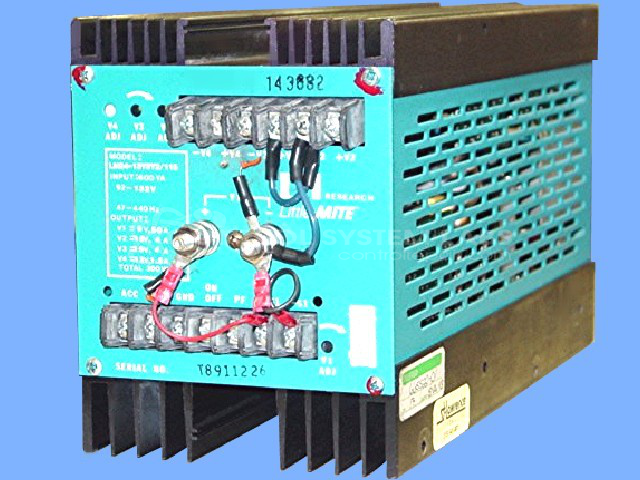

Product Overview: The LH Research Little-Mite LM24-13Y3Y2/115 is a compact quad-output switching power supply rated at 300W with 115VAC input. It provides one primary output and three secondary outputs at various DC voltages, typically in a 24V configuration based on the model designation. This supply is commonly used in industrial control systems, automation equipment, and instrumentation where multiple isolated voltage rails are required in a space-constrained environment. The unit features electrolytic filter capacitors on each output stage for voltage regulation and ripple reduction.
Category: Power Supply
Manufacturer: LH Research
Manufacturer Part Number: LM24-13Y3Y2/115
Series: LM Little-Mite Power Supply
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
This product may experience issues related to power output stability. In some cases, the unit powers up with approximately 6V on the primary output while secondary outputs register 0V. The primary output voltage may decrease to 0V within a minute, regardless of load conditions.
Repair Approach
Repair work may include replacing electrolytic capacitors and making necessary adjustments. Complex disassembly and reassembly can be time-consuming. Some units may be classified as Beyond Economic Repair depending on the findings during evaluation.
Testing & Quality
Diagnostic testing includes verification of fuse integrity and power output levels. Units are tested to ensure output levels meet specifications where possible. CSL provides a quotation based on evaluation findings before repair work proceeds.
Service and repair your broken LH Research part
We can repair your LH Research model LM24-13Y3Y2/115 in our facility. Let our skilled technicians get your LH Research back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
