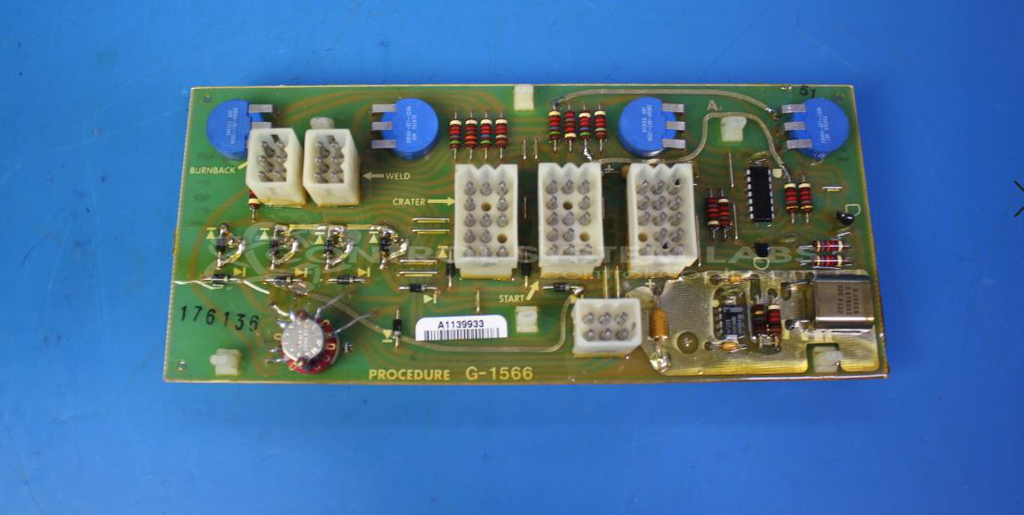

Lincoln Electric G-1566 Control Board

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/67813/image_1920?unique=98a8500
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 84198
Product Overview: A control board, also called a procedure board, used in Lincoln Electric welding equipment to manage the arc-striking and welding sequence. It governs output timing and control functions, incorporating timing and switching logic circuitry essential to proper welder operation.
Category: Control Board
Manufacturer: Lincoln Electric
Manufacturer Part Number: G-1566
Also Known As(AKA): Procedure Board

Common Failures

Some units may experience an output issue where the device does not strike an arc. This type of concern was reported by the customer and reviewed during the evaluation process.

Repair Approach

The repair involved replacing certain components and applying specialized processes to the board. These steps were taken to address the reported output issue based on the evaluation findings.

Testing & Quality

Following repair, the device was tested using an oscilloscope and a digital multimeter. The unit also underwent a 30-minute burn-in test to verify functionality and reliability before return.

Service and repair your broken Lincoln Electric part


We can repair your Lincoln Electric model G-1566 in our facility. Let our skilled technicians get your Lincoln Electric back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
