Repair
Repair Price: $ 708.00
Purchase
CSL Part Number: 27018

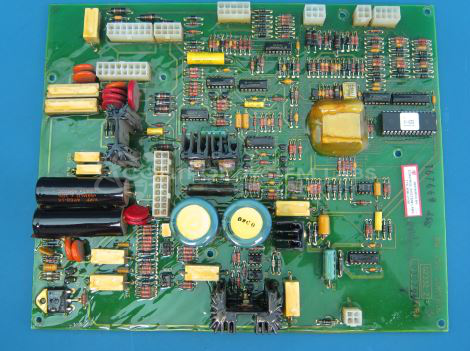

Product Overview: The Wirematic 250 Control Board (G2332-2) is a main control board for Lincoln Electric Wirematic 250 wire feeder systems used in industrial welding applications. It regulates wire feed speed, motor control, and interfaces with the welding power source. The board features conformal coating for environmental protection and includes transistor-based power control circuitry. It is compatible with various Lincoln Electric MIG welding systems where precise wire feeding is critical for consistent weld quality in manufacturing and fabrication environments.
Category: Control Board
Manufacturer: Lincoln Electric
Manufacturer Part Number: G2332-2
Also Known As(AKA): 9SG2332-2
Common Failures
This product may encounter issues related to conformal coating on transistor leads, which can affect component testing. Customers sometimes report problems that result in breaker trips; however, these issues may originate from other components in the system rather than the unit itself.
Repair Approach
The repair process may involve removal and reapplication of conformal coating on transistors to facilitate testing. Repairs and evaluations are conducted with power-up testing to identify issues related to power input and output circuits.
Testing & Quality
Repaired units are tested to verify proper power input acceptance without excessive current draw and to confirm correct voltage outputs. Testing includes checks for short circuits in transistors and diodes. In cases where no faults are detected during evaluation, the issue may be related to other components in the connected system.
Service and repair your broken Lincoln Electric part
We can repair your Lincoln Electric model G2332-2 in our facility. Let our skilled technicians get your Lincoln Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
