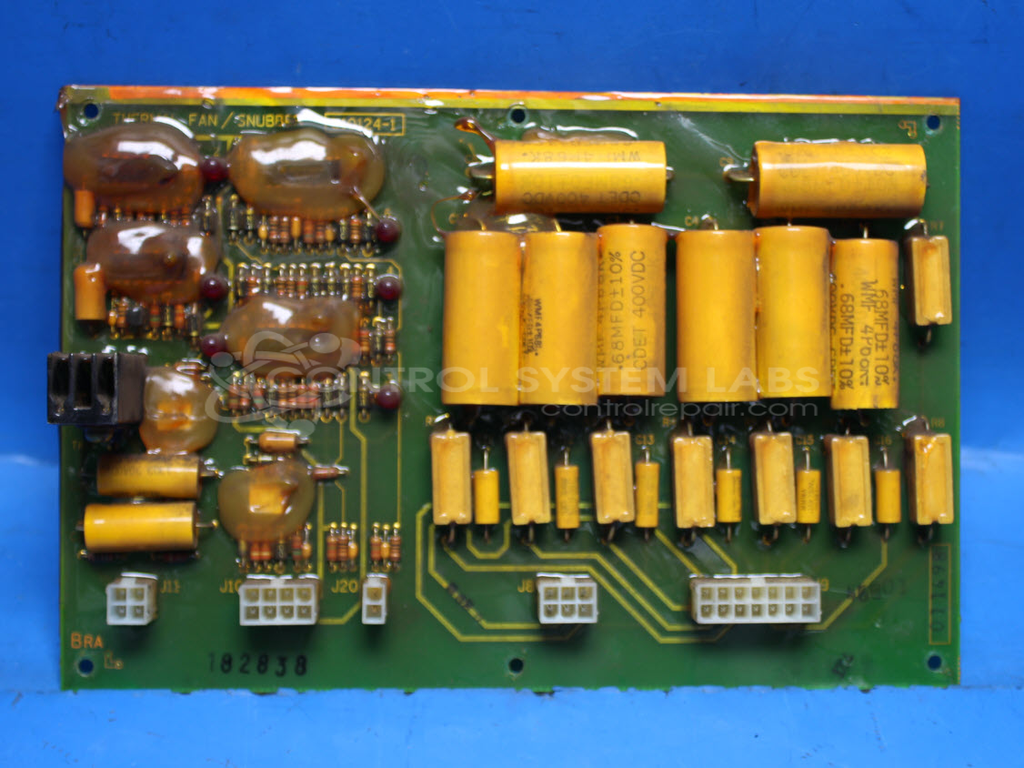

Lincoln Electric L10124-1 Thermal Fan/Snubber Board
Repair
Call for price
Purchase
CSL Part Number: 87464
Product Overview: A thermal fan and snubber control board that activates a cooling fan based on temperature and provides snubber circuitry for transient suppression. Used in industrial welding power sources such as constant-voltage welders. Features op-amp-based control logic with 120VAC fan output and conformal-coated construction.
Category: Control Board
Manufacturer: Lincoln Electric
Manufacturer Part Number: L10124-1
Common Failures
One reported issue involves the fan not activating when the machine heats up. This has been observed in the Lincoln CV-655 model and may only occur under heated operating conditions.
Repair Approach
The repair process involved component-level testing and selective replacement. Conformal coating was removed to allow for testing, then reapplied. The repair included testing power resistors, capacitors, and semiconductors, along with replacing op-amp components.
