CSL Part Number: 110036

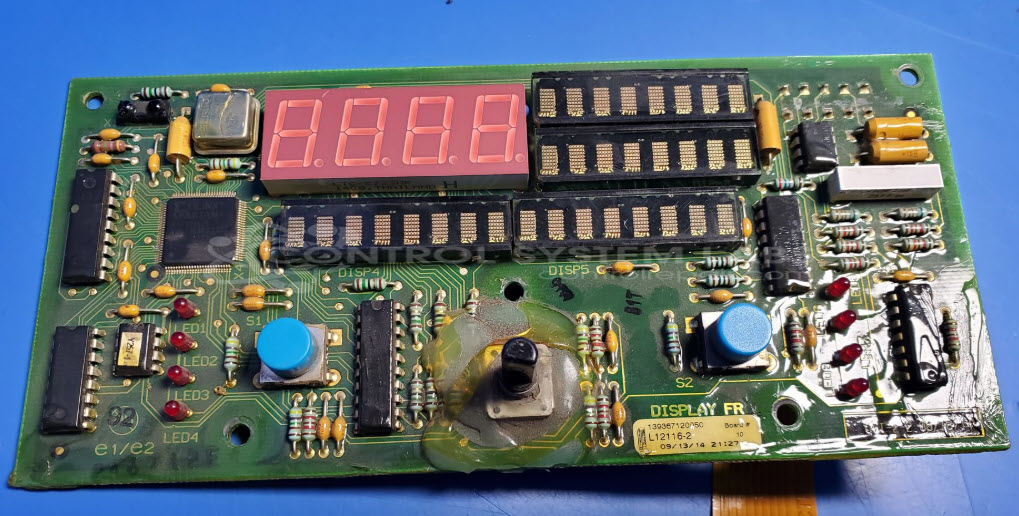

Product Overview: The Power Feed MSP4 Optional Display Board is an interface and control module used in Lincoln Electric wire feed welding systems, including the Power Feed 10M and 25M models. This board provides user interface functions through rotary encoders and displays, enabling operators to adjust wire feed speed and other welding parameters. It communicates with the main welding controller via a daisy-chained serial interface and contains an FPGA with externally stored configuration in EEPROM, along with voltage regulation and signal conditioning circuitry.
Category: Welders
Manufacturer: Lincoln Electric
Manufacturer Part Number: L12116-2
Also Known As(AKA): 9SL16263-1; G4456; MSP4
Used in Lincoln Power Feed 10M, 25M, and others
Common Failures
This product has experienced recurring issues primarily related to encoder malfunctions and connection problems. Symptoms often include a lack of response when adjusting the control knobs or displaying error codes, potentially due to a failed encoder or improper pin connections.
Repair Approach
Repairs typically involve replacing defective encoders and addressing connection issues related to conformal coatings on connector pins. In some cases, adjustments are made to improve signal connections between interconnected components. When connection issues are identified, coatings are removed, and components are tested to confirm functionality.
Testing & Quality
Units undergo testing after repairs to confirm operational status. This includes verifying voltage levels, crystal oscillations, and confirming functionality of communication lines. Additionally, power cycling tests and specific pin monitoring confirm that components are working as intended before the unit is returned.
Service and repair your broken Lincoln Electric part
We can repair your Lincoln Electric model L12116-2 in our facility. Let our skilled technicians get your Lincoln Electric back in operation quickly.
