Repair
Repair Price: $ 2,984.00
Purchase
CSL Part Number: 121645

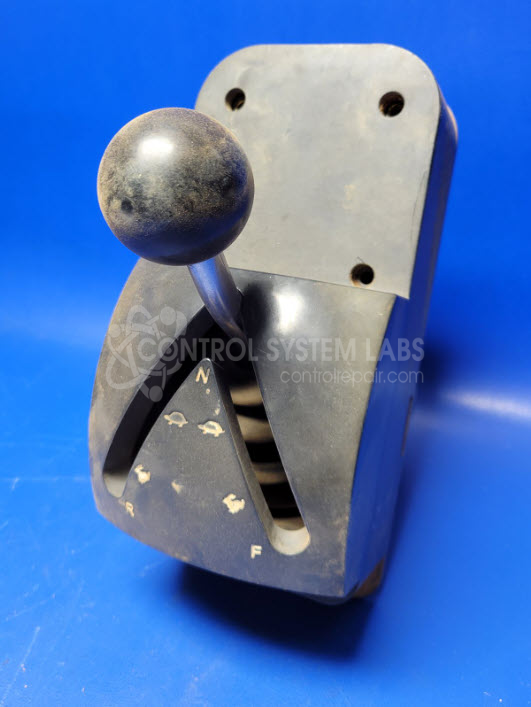

Product Overview: The Linde H2X 684 R 01494 is a proportional joystick controller used primarily in material handling equipment, including Linde and Liebherr forklifts and mobile machinery. It translates operator hand movements into electrical signals for precise control of hydraulic functions such as lift, tilt, and directional movement. The unit features multiple center-tapped potentiometers (typically 1K ohm, 4-pin configuration) that provide analog position feedback across multiple axes, enabling smooth, proportional control of vehicle operations.
Category: Joystick / Controller
Manufacturer: Linde
Alternate Manufacturer Names: Liebherr
Manufacturer Part Number: CEH-34/01G

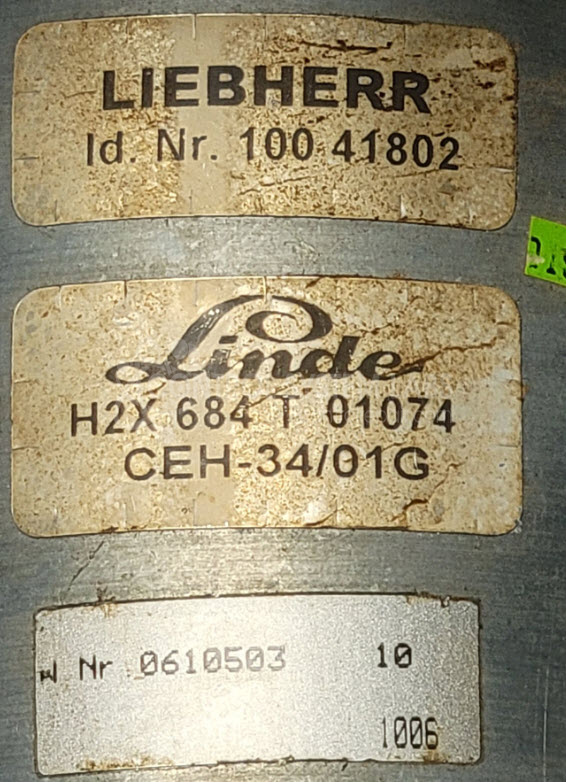

Also Known As(AKA): 100 41802, H2X 684 T 01074 0610503
Other Synonyms: Liebherr
Repair quote does not cover replacing missing knobs/handle unless noted.
Common Failures
Common failure modes reported for this joystick include loss of function in the reverse direction. These issues may be associated with wear or damage to internal components such as potentiometers or connectors.
Repair Approach
When a joystick exhibits directional control issues, we evaluate the unit and identify the components requiring replacement. In some cases, parts availability may limit repair options. If necessary components are not available, we will contact you to discuss alternatives.
Testing & Quality
All repaired units are tested for proper operation before return. Units that do not pass testing are subject to further evaluation to identify the root cause.
Repair your broken Linde part
We can repair your Linde model CEH-34/01G .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
