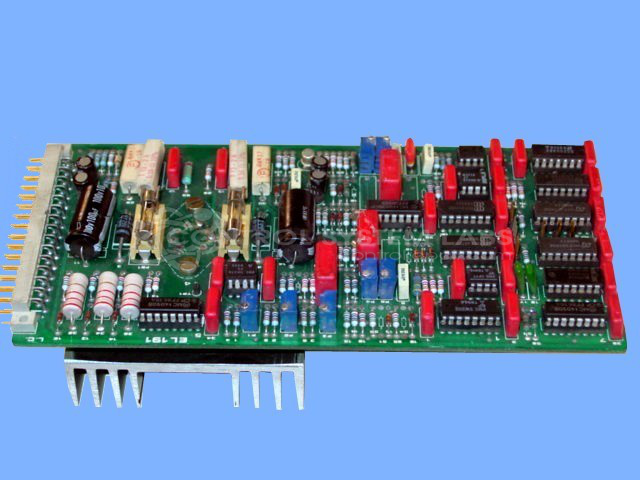

MAF EL191 Galaxy Motor Control Card
Repair
Repair Price: $ 1,076.00
Purchase
CSL Part Number: 31079
Product Overview: A motor control card used in paper-handling and web-processing equipment to regulate DC motor output voltage and direction. Features an OPA512 power op-amp output stage, selectable control inputs, adjustable voltage potentiometers, and PLC-interfaced pre-register signaling for precise motor speed control.
Category: Motor Controls
Manufacturer: MAF
Manufacturer Part Number: EL191
Common Failures
Common issues reported include blown fuses, missing components such as heatsinks, and problems with motor output voltage. In some cases, control units have failed, resulting in the inability to select inputs or control output voltage.
Repair Approach
The repair process may involve replacing defective components such as fuses, capacitors, and control units. Components like U1, U9, and multiple fuses are frequently replaced, and circuits are examined for solder issues.
Testing & Quality
After repairs, units are tested to ensure proper operation. This may include running tests for several hours to verify stability and function. Customers are advised to verify fuse ratings and may need to fine-tune units post-repair.
Service and repair your broken MAF part
We can repair your MAF model EL191 in our facility. Let our skilled technicians get your MAF back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
