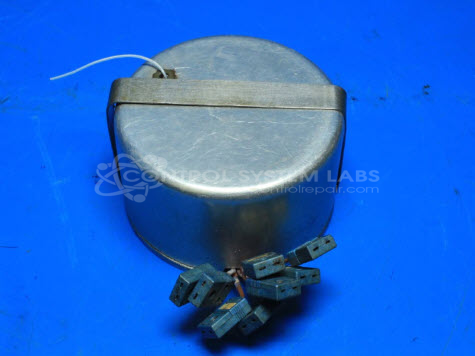

Magna Systems VGD-MAGNA688 ThermoBiscuit Thermal Profile Transmitter

Repair

Repair Price: $ 992.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/68219/image_1920?unique=444cd7b
  • Condition

Purchase Price: $ 0.00 $ 0.00 992.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 84604
Product Overview: A battery-powered thermal profile transmitter that measures and wirelessly transmits temperature data from thermocouple probes to a USB access point and software for analysis. Used in oven and reflow profiling applications, it broadcasts identifying data bursts including attached thermocouple information via an RF transceiver.
Category: Temperature Control
Manufacturer: Magna Systems
Manufacturer Part Number: VGD-MAGNA688
Also Known As(AKA): 7231A-MAGNA688

Common Failures

Issues reported with this product have included short circuits on the recording unit, inability to transmit data, and antenna-related concerns. Customers have noted potential shorts on the main board, units that would receive but not transmit, and challenges with antenna replacement.

Repair Approach

Repairs have involved replacing components such as FETs, RF Transceiver ICs, and Voltage Reference ICs. In some cases, specialized equipment and detailed procedures have been used to remove and replace surface-mount components. Some units have been returned unrepaired when further work presented risk of damage or exceeded CSL repair capability.

Testing & Quality

After repair, units are tested for connectivity and software functionality. Extended burn-in testing may be performed to verify reliability. Some units have been found Beyond Economic Repair due to physical condition, prior modification, or other factors that prevented successful evaluation or repair.

Service and repair your broken Magna Systems part


We can repair your Magna Systems model VGD-MAGNA688 in our facility. Let our skilled technicians get your Magna Systems back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
