Repair
Repair Price: $ 518.00
Purchase
CSL Part Number: 16797

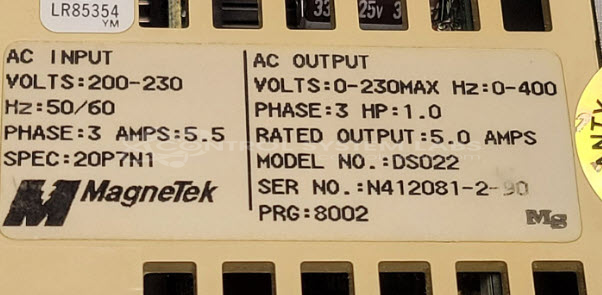

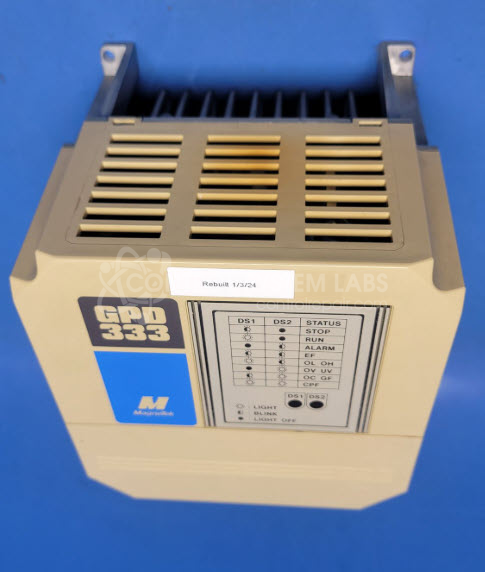

Product Overview: The Magnetek GPD333 DS022 is a 1 HP AC drive designed to control three-phase motors in light industrial applications. It operates on 230VAC input power and provides variable speed control through adjustable frequency output. Part of the GPD Series, this drive is commonly used in conveyor systems, pumps, fans, and material handling equipment where precise motor speed regulation is required. The compact design includes digital display and keypad for parameter adjustment and monitoring.
Category: AC Motor Controls
Manufacturer: Magnetek
Manufacturer Synonyms: magnatek yaskawa
Manufacturer Part Number: DS022
Series: GPD Series AC Drive
Common Failures
Units may exhibit a condition where the display does not power on even when the charge light is activated. This condition can be associated with capacitor deterioration within the power supply circuit.
Repair Approach
Our team evaluates the power supply circuitry and replaces defective capacitors as needed. When circuit board traces show damage, those are also repaired to restore proper electrical continuity.
Testing & Quality
Following repair work, units are tested using diagnostic procedures and functional checks under simulated load conditions to verify proper operation.
Service and repair your broken Magnetek part
We can repair your Magnetek model DS022 in our facility. Let our skilled technicians get your Magnetek back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
