Repair
Repair Price: $ 390.00
Purchase
CSL Part Number: 105798

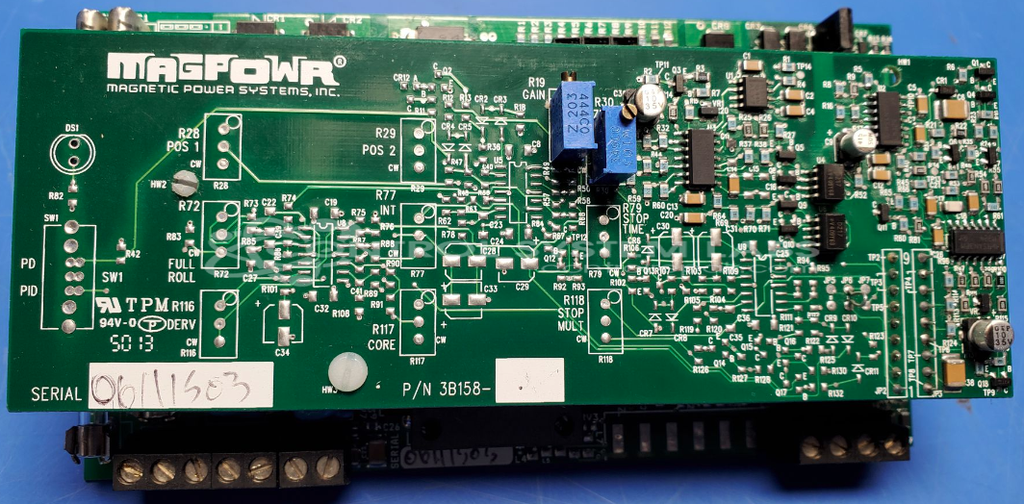

Product Overview: The Motor Control 2 Board Assembly (3B156-3 with 3B158) is a tension control module manufactured by Magnetic Power Systems. It features dual PCB construction with an upper processing board for calculations and signal conditioning, and a lower power board for I/O and output drive. The unit accepts 120VAC input and provides regulated DC power supplies (+5VDC, +12VDC) along with adjustable high-voltage DC output (up to 100VDC) for controlling tension in web handling applications. Gain and Zero adjustment potentiometers allow for calibration, and jumper-selectable output ranges support various motor configurations.
Category: Motor Controls
Manufacturer: Magnetic Power Systems
Manufacturer Part Number: 3B156-3 with 3B158
Limited Repair
The Magnetic Power Systems part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Magnetic Power Systems part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
