Repair Price: $ 628.00
Purchase
CSL Part Number: 9138

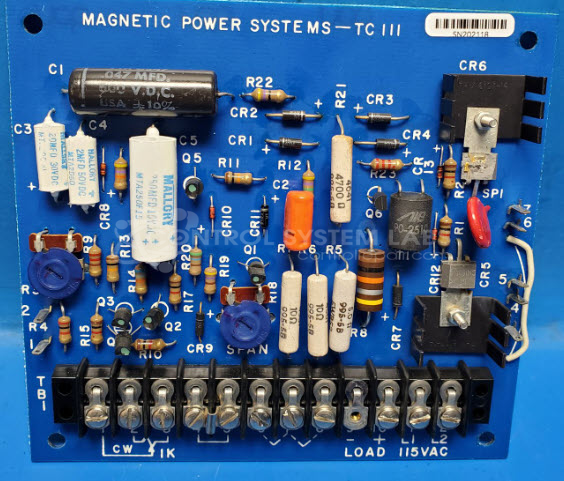

Product Overview: The Magnetic Power Systems TC-III is a regulated SCR-based power supply used primarily in paper manufacturing equipment for DC motor control applications. It employs silicon-controlled rectifiers to convert AC line power into regulated DC output, enabling precise speed control of industrial motors. The unit features unijunction transistor triggering circuitry and includes protective components for voltage regulation and filtering. Common applications include paper mill drives and other industrial processes requiring controlled DC power delivery to motors and actuators.
Category: Power Supply
Manufacturer: Magnetic Power Systems
Manufacturer Part Number: TC-III
Also Known As(AKA): 2B63-1
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
Common issues with the Magnetic Power Systems TC III board include blown Silicon Controlled Rectifiers (SCRs) and defective components resulting in no output. Failures may involve capacitors, diodes, and transistors.
Repair Approach
Our evaluation process identifies defective components, which may include SCRs, transistors, capacitors, and related parts. Repair work involves replacing defective components as identified during evaluation. Additional preventive measures may be performed to support reliability.
Testing & Quality
Units are tested following repair, which may include motor operation testing and resistive load testing. Testing can reveal intermittent issues that appear under specific conditions, such as thermal stress. Repairs are verified through waveform and voltage checks referenced to manufacturer specifications to confirm functional performance.
Service and repair your broken Magnetic Power Systems part
We can repair your Magnetic Power Systems model TC-III in our facility. Let our skilled technicians get your Magnetic Power Systems back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
