Repair
Repair Price: $ 712.00
Purchase
CSL Part Number: 87200

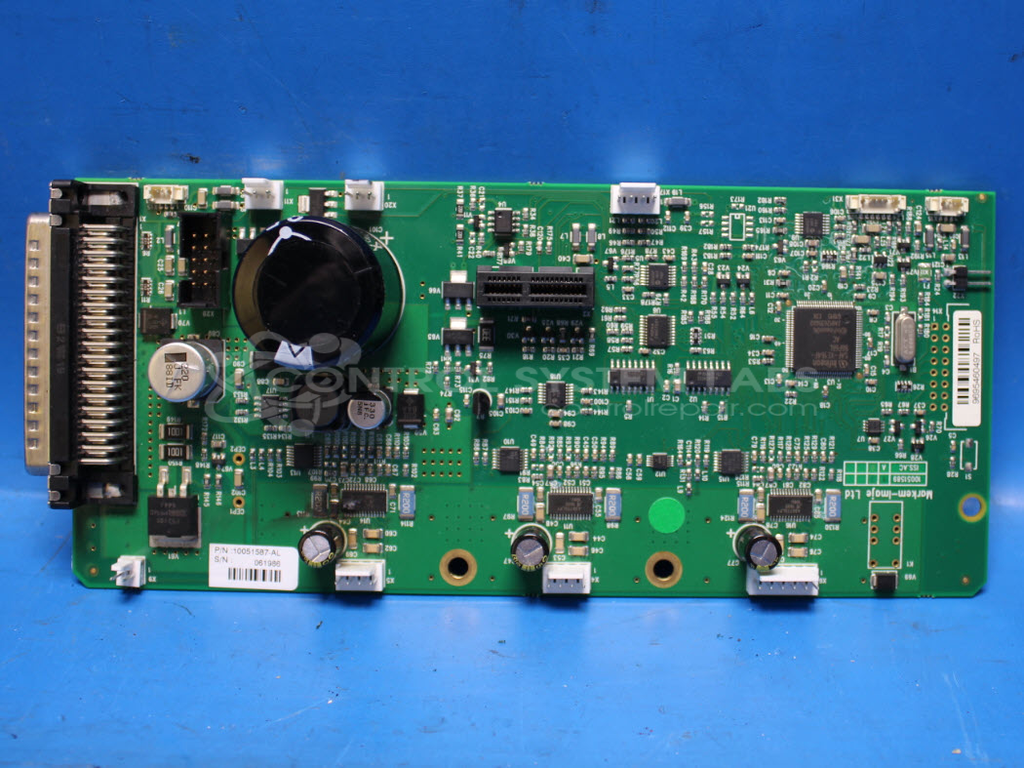

Product Overview: The Markem 10051587-AL is a control board used in Markem-Imaje industrial coding and marking systems. It manages stepper motor control through three DMOS driver channels (A3977SLP stepping motor drivers), operating on 24VDC input with 5V regulation for logic circuits. The board controls printhead positioning and movement in continuous inkjet printers and laser marking equipment. Key components include motor driver ICs at positions U11, U14, and U16, plus buffering and logic circuitry to coordinate multi-axis motion control for precise product marking applications.
Category: Control Board
Manufacturer: Markem Corporation
Manufacturer Synonyms: Markem-Imaje
Manufacturer Part Number: 10051587-AL
Also Known As(AKA): 10051589
Common Failures
Common issues include corrosion on motor driver ICs and related components, as well as defective stepper drive chips and shorted quad buffer/driver components.
Repair Approach
Repair work typically involves cleaning affected areas, resoldering compromised connections, and replacing defective or corroded components as needed. In some cases, specific components may be replaced as part of preventive maintenance.
Testing & Quality
Following repair, units are tested to verify essential electrical parameters. Full system-level testing is not performed. Customers should conduct final testing in their application. Warranty coverage is limited to the components replaced during repair, in accordance with CSL warranty policy.
Repair your broken Markem Corporation part
We can repair your Markem Corporation model 10051587-AL .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
