Repair Price: $ 1,954.00
Purchase
CSL Part Number: 85891

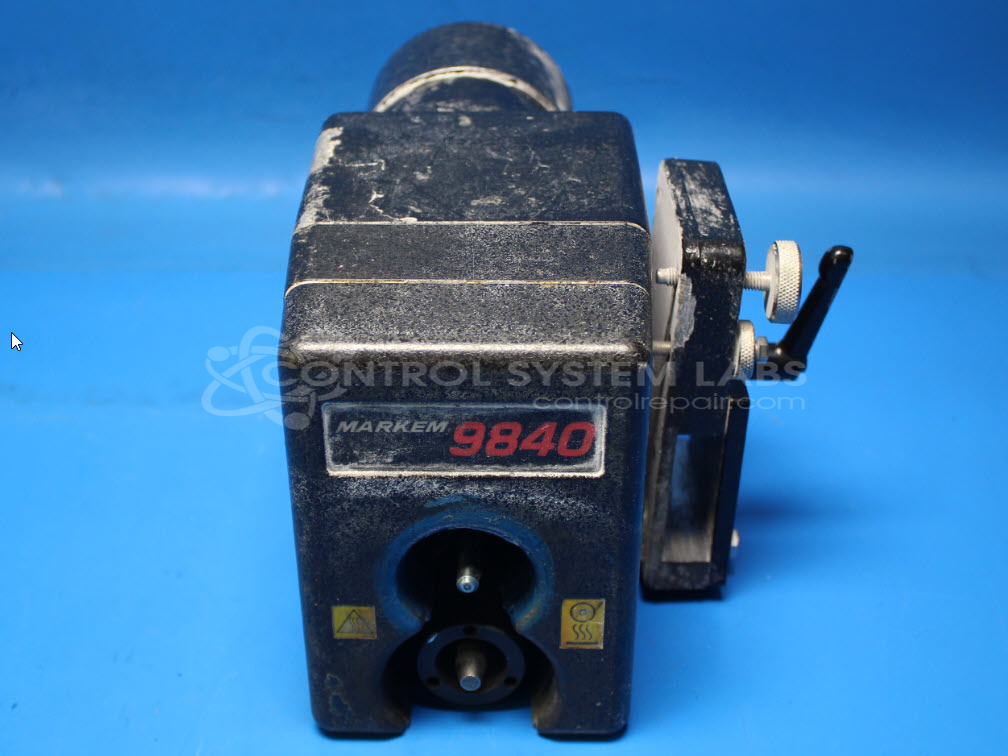

Product Overview: The Markem 9840 with ME3509-204E servo motor is a precision coder dater control assembly used in industrial printing and packaging equipment for printing variable data such as dates, batch codes, and expiration information on products. It features a servo-driven print head with incremental encoder feedback (typically 1000 PPR), thermal control components, and sealed bearings designed for demanding environments. This assembly combines the controller electronics with an integrated servo motor to precisely position and rotate printing elements, commonly used in food packaging, pharmaceutical labeling, and other high-speed production lines requiring accurate, repetitive coding operations.
Category: Control Assembly
Manufacturer: Markem Corporation
Manufacturer Synonyms: Markem-Imaje
Manufacturer Part Number: 9840 with ME3509-204E 0
Common Failures
Units received for evaluation have presented with various issues, including motor-related concerns, print head operation, and mechanical wear affecting components such as shafts and bearings. Some units have arrived with missing or loose hardware, including screws and thermal sensors. Foreign object debris has also been observed in some cases.
Repair Approach
The repair process typically involves component-level evaluation and replacement as needed, which may include encoders, bearings, shafts, and related hardware. Thorough cleaning is performed when contamination or debris is present. Mechanical disassembly and reassembly are performed as required to restore functionality. In select cases, modifications may be implemented to address component availability or compatibility concerns.
Testing & Quality
Following repair work, units undergo functional testing, which may include extended run-time testing under load and no-load conditions. Testing protocols are designed to verify that repaired units operate as expected and to identify any remaining concerns before return. Quality verification ensures that all accessible functions have been reviewed and that units operate without errors during testing.
Service and repair your broken Markem Corporation part
We can repair your Markem Corporation model 9840 with ME3509-204E 0 in our facility. Let our skilled technicians get your Markem Corporation back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
