CSL Part Number: 85491

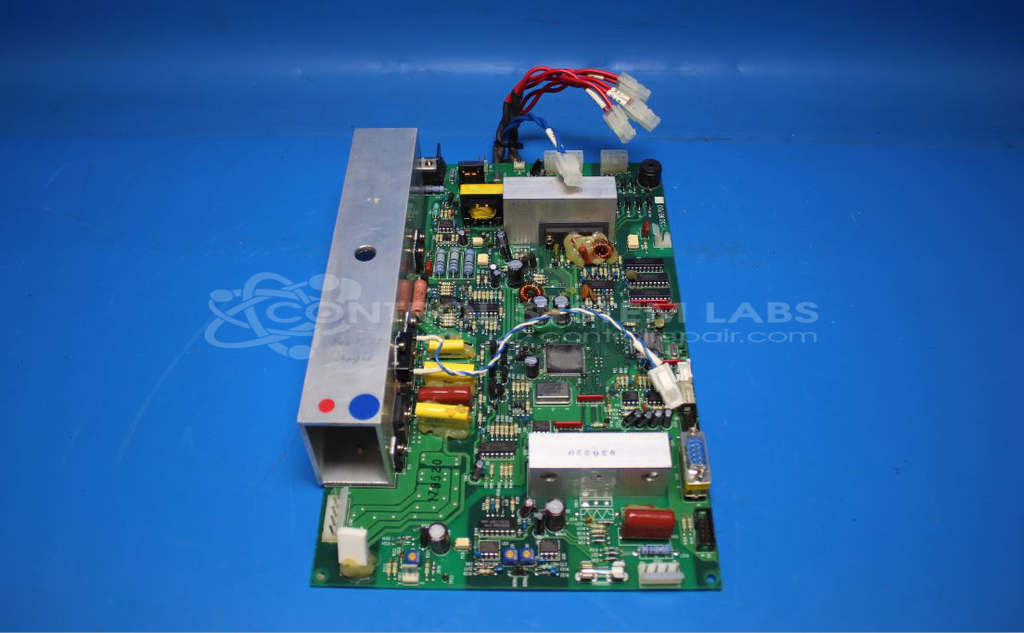

Product Overview: The X509B700 is a control board manufactured by MC Machinery for EDM (electrical discharge machining) systems. It functions as a power distribution and motor control module, incorporating a power supply section that generates multiple DC voltage outputs and stepper motor driver circuitry using PWM chopper technology. The board manages voltage regulation and distributes power to various system components while controlling precise motor movements typical in EDM applications. Common failure modes involve aging electrolytic capacitors and motor driver ICs, particularly after prolonged storage or continuous operation in industrial environments.
Category: Control Module
Manufacturer: MC Machinery EDM
Manufacturer Part Number: X509B700
Main components may have their markings removed.
Common Failures
This product has experienced issues related to aged components, particularly capacitors, which may result in smoking upon power application. Another common failure involves a defective pulse width modulation (PWM) chopper-type bipolar stepping motor driver. These failures typically occur in older units that have been in storage for extended periods.
Repair Approach
The repair process generally involves diagnostic testing to identify defective components, followed by their replacement. This includes testing all capacitors for equivalent series resistance (ESR) and replacing any that are found to be faulty. For specific issues such as defective motor drivers, the components are removed and replaced as necessary.
Testing & Quality
After repairs, the units undergo power-up tests to ensure no immediate failures, such as smoking or incorrect voltage outputs across power supply components. The extent of testing is dependent on the symptoms identified, with some items undergoing more thorough checks depending on the initial diagnosis. Please note that Time and Materials work is billed for labor and material spent attempting repair and is not warrantied.
Service and repair your broken MC Machinery EDM part
We can repair your MC Machinery EDM model X509B700 in our facility. Let our skilled technicians get your MC Machinery EDM back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
