Repair
Repair Price: $ 1,554.00
Purchase
CSL Part Number: 85549

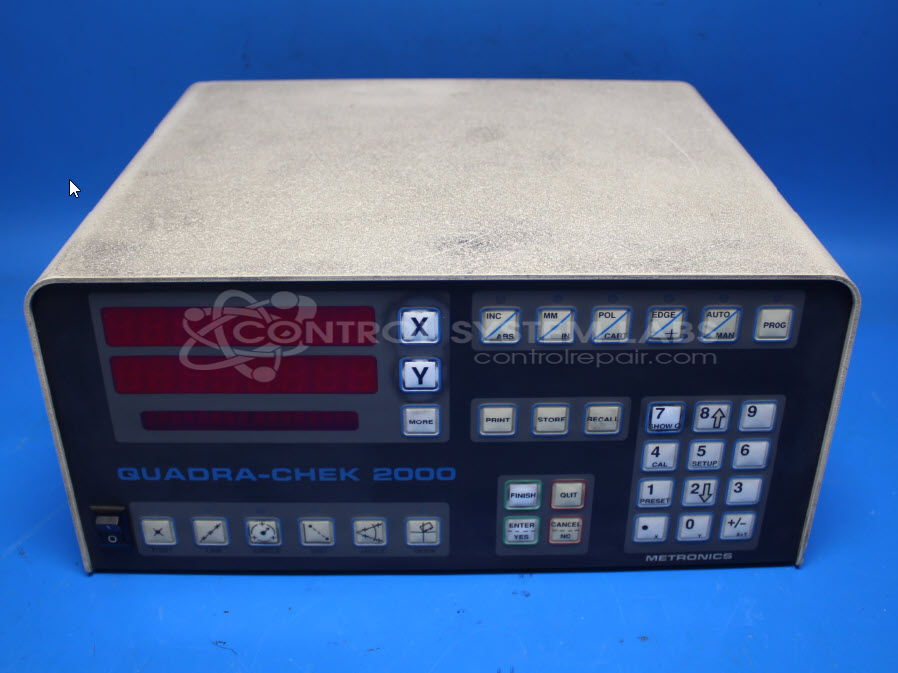

Product Overview: The Quadra-Chek 2000 series X-Y Control is a digital readout (DRO) system used in precision measurement and metrology applications. It provides position measurement and display for coordinate measuring machines, toolroom equipment, and precision machining centers. The system processes encoder signals to display X and Y axis coordinates, enabling accurate dimensional measurement and quality inspection tasks. Manufactured by Metronics (also known under the HEIDENHAIN brand), it features multi-axis capability, switch inputs for probe and control functions, and battery-backed memory for data retention.
Category: Meters / Gauges / Readouts
Manufacturer: Metronics
Alternate Manufacturer Names: HEIDENHAIN
Manufacturer Part Number: QC2205-AR
Series: Quadra-Check 2000 Readout
Other Synonyms: HEIDENHAIN
Requires sending in for repair quote.
Common Failures
This product may experience failures where the unit does not power on or produces a buzzing sound when powered. Issues observed during evaluation have included damaged components on the circuit board, degraded capacitors, and defective capacitors within the power supply.
Repair Approach
Repair typically involves the replacement of defective capacitors within the power supply and any damaged components identified during evaluation. For units experiencing these failures, replacement of these components has restored functionality in many cases. Trace repair has not been required in units evaluated to date.
Testing & Quality
Following repair, units undergo testing to verify functionality. This includes diagnostic assessments, burn-in testing, and verification of inputs and control features using test equipment. Units must pass these tests before being returned.
Service and repair your broken Metronics part
We can repair your Metronics model QC2205-AR in our facility. Let our skilled technicians get your Metronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
