CSL Part Number: 67919

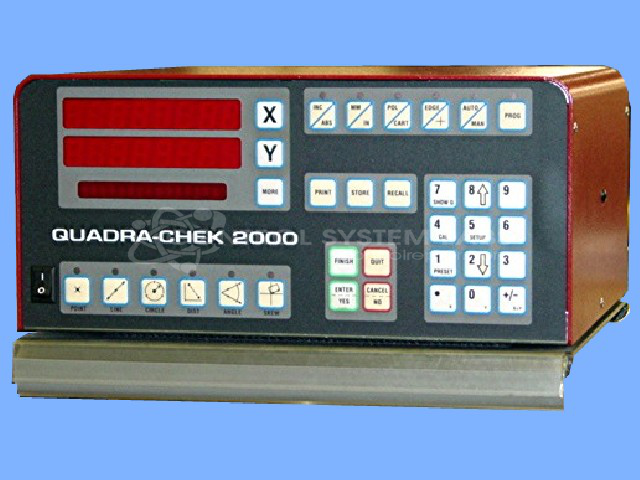

Product Overview: The Quadra-Chek 2000 is a digital readout (DRO) system manufactured by Metronics (part of HEIDENHAIN) for precision dimensional measurement applications. It provides X and Y axis position display by processing quadrature encoder signals with A/-A and B/-B differential inputs operating at 5VDC. The QC2205-HH-NL model features a front-panel keypad for configuration and includes a rechargeable 3.6V NiMH backup battery for memory retention. This DRO is commonly used on measuring machines, inspection equipment, and manual milling or grinding machines where accurate two-axis position feedback is required. The unit runs firmware version 2.04 and interfaces with linear or rotary encoders through an 8-pin encoder input connector.
Category: Meters / Gauges / Readouts
Manufacturer: Metronics
Alternate Manufacturer Names: HEIDENHAIN
Manufacturer Part Number: QC2205-HH-NL
Series: Quadra-Check 2000 Readout
Other Synonyms: HEIDENHAIN
Requires sending in for repair quote.
Common Failures
The repair history of this product reveals several recurring issues, including RAM failure messages, components not powering on, and physical damage during shipping. Additionally, some units have experienced high resistance (ESR) in capacitors and battery corrosion, leading to further trace damage on circuit boards.
Repair Approach
Repairs frequently include replacing defective and preventative components such as electrolytic capacitors and rechargeable batteries. Circuit board trace repairs are also common, especially after damage from corrosion. In some cases, mechanical integrity is restored due to shipping damage.
Testing & Quality
Post-repair, units undergo diagnostics and burn-in tests with load simulators to verify functionality. Testing typically involves checking all inputs, displays, and keypads. Repairs that pass quality verification confirm that all functions operate correctly, including axis movements and speed control for relevant components.
Service and repair your broken Metronics part
We can repair your Metronics model QC2205-HH-NL in our facility. Let our skilled technicians get your Metronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
