Metronics QC2215-AR-NL Quadra-Check 2000 X-Y Axis Readout
Repair
Repair Price: $ 1,554.00
Purchase
CSL Part Number: 108177

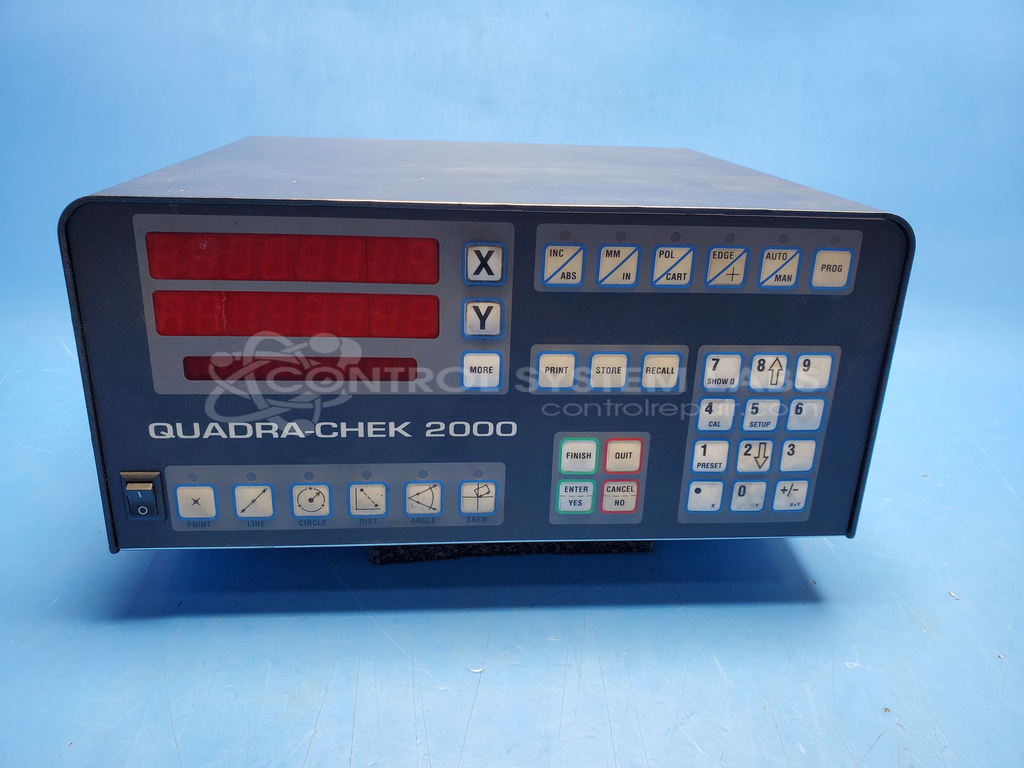

Product Overview: The Quadra-Check 2000 is a digital readout (DRO) system manufactured by Metronics for precision X-Y axis measurement applications. Model QC2215-AR-NL provides dual-axis position display for measuring machines, toolroom equipment, and inspection systems. It features a membrane keypad with 34 keys and metal dome switches for operator input. The unit operates on low-voltage DC power with an internal rechargeable 3.6V NiMH battery for memory retention. Common configurations in this series support two or three axes of linear measurement using external encoder inputs.
Category: Meters / Gauges / Readouts
Manufacturer: Metronics
Manufacturer Part Number: QC2215-AR-NL
Series: Quadra-Check 2000 Readout
Requires sending in for repair quote
Common Failures
Two primary issues were identified in the repair history: power supply problems and battery-related failures. In some cases, the unit failed to power on or stay powered. Additionally, main board damage and issues retaining measurement information were reported.
Repair Approach
Repairs typically involved replacing defective components such as rechargeable batteries, resistors, power supplies, and keypads. Replacement of various capacitors and rectifier diodes was also conducted. When main boards or displays were damaged, they were replaced to restore functionality.
Testing & Quality
Diagnostic testing was performed to confirm repairs. Initial tests involved checking power supply function and ensuring the display responds correctly. Units were subjected to burn-in tests to verify stability over extended periods. Functional tests of the unit's axes were conducted, although full communication tests were not performed.
Service and repair your broken Metronics part
We can repair your Metronics model QC2215-AR-NL in our facility. Let our skilled technicians get your Metronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
