Repair
Repair Price: $ 968.00
Purchase
CSL Part Number: 36738

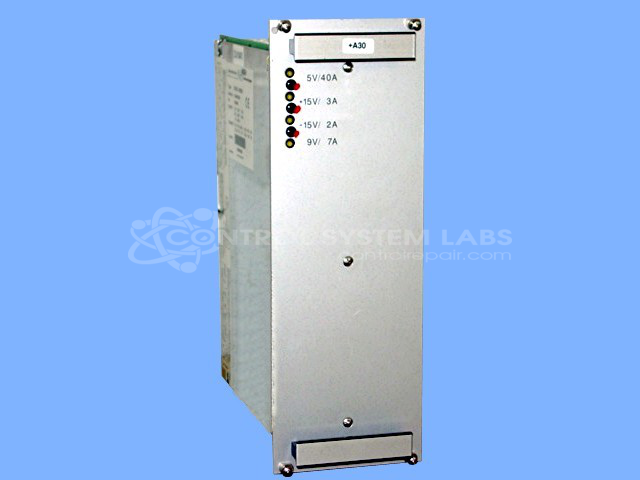

Product Overview: The MGV P4310-05159 is a German-manufactured quadruple output DC power supply designed for Arburg plastic injection molding machines. It provides four independent DC voltage rails to power control systems and auxiliary components. The unit features selectable AC input voltage (120V or 230V) configured by fuse position. Common output configurations include 5V, 9V, and ±15V rails. This switching power supply uses MOSFETs and pulse transformers in its conversion circuitry and includes protective fusing for both AC input and DC outputs.
Category: Power Supply
Manufacturer: MGV
Manufacturer Part Number: P4310-05159
Also Known As(AKA): 15.6940.200
Common Failures
Units commonly arrive with symptoms including failure to power up, no output voltage, or immediate shutdown after startup with indicator lights flashing. Evaluation has revealed issues such as blown fuses, defective components, and incorrect fuse placement for the specified voltage settings.
Repair Approach
Repairs typically involve replacing capacitors, semiconductor components, and fuses as needed. In some cases, preventative replacement of low voltage electrolytic capacitors has been performed, and fuses have been reinstalled to match the customer's specified voltage settings. When overheating components are identified, additional diagnostic testing may be required to determine the root cause.
Testing & Quality
Standard testing procedures include component-level checks and full operational load testing. When units are repairable, they are tested to verify proper operation after repair. In some instances, units have been returned unrepaired due to parts unavailability or classification as Beyond Economic Repair. Unmarked or obsolete components can present additional repair challenges.
Service and repair your broken MGV part
We can repair your MGV model P4310-05159 in our facility. Let our skilled technicians get your MGV back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
