Repair
Repair Price: $ 1,104.00
Purchase
CSL Part Number: 18261

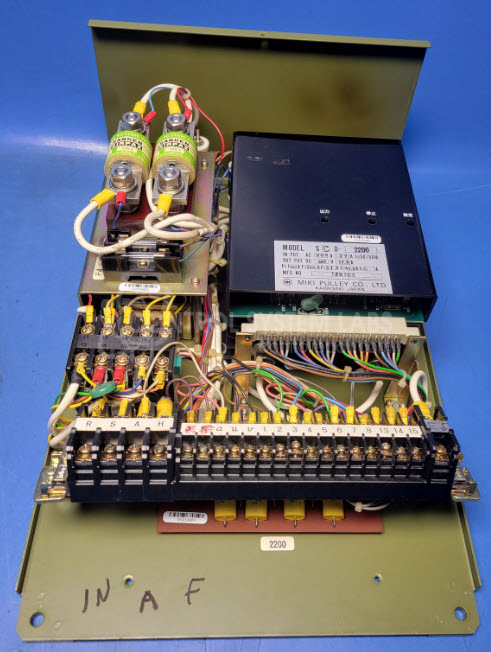

Product Overview: The Miki Pulley SCD-2200 is a 3HP DC motor drive designed to control DC motor speed and torque in industrial applications. It operates on single-phase input and provides regulated DC output for motors up to 3 horsepower. Commonly used in paper processing equipment and other machinery requiring precise DC motor control, it features analog speed control and feedback capabilities including tachometer input for closed-loop operation.
Category: DC Motor Controls
Manufacturer: Miki Pulley Co. Ltd.
Manufacturer Part Number: SCD-2200
Common Failures
Common issues identified with this product include defective resistors and electrolytic capacitors leading to operational errors, such as error lights during power-up. Heat damage has also been observed near the power and control boards, affecting certain components over time.
Repair Approach
The repair process typically involves replacing defective resistors and capacitors. Preventative component replacements may also be performed to support long-term reliability. The repair includes diagnostic testing to identify the faults, followed by cleaning and inspection of potentially heat-affected areas.
Testing & Quality
Post-repair, the product undergoes a burn-in test with a motor to verify functionality. Standard diagnostic tests are conducted to ensure all components meet the required specifications. A co-check procedure is also performed to maintain quality standards.
Service and repair your broken Miki Pulley Co. Ltd. part
We can repair your Miki Pulley Co. Ltd. model SCD-2200 in our facility. Let our skilled technicians get your Miki Pulley Co. Ltd. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
