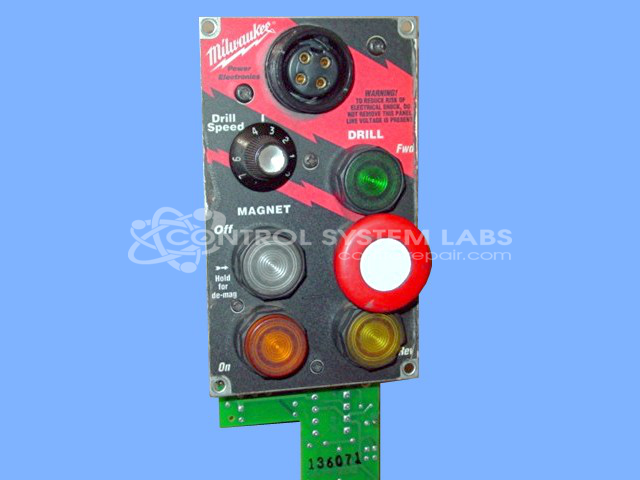

Milwaukee Electric Tool 99-1210-066 Drill Stand Magnetic Control Panel

Repair

Repair Price: $ 596.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/56059/image_1920?unique=b0d5a1a
  • Condition

Purchase Price: $ 0.00 $ 0.00 596.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 37344
Product Overview: The magnetic control panel is an operator interface assembly for a magnetic drill press stand. It provides forward and reverse motor control through push buttons and onboard relays, with a microcontroller module managing switch inputs and directional functions for portable magnetic drilling equipment.
Category: Operator Interface
Manufacturer: Milwaukee Electric Tool
Manufacturer Part Number: 99-1210-066
Also Known As(AKA): 23-35-0310

Common Failures

Several common issues have been identified with this product, including problems with power supply and button functionality. Symptoms reported include power failure due to damaged relays and diodes, missing or non-functional buttons, and damaged traces. Additionally, some units exhibited burned or disconnected traces on the circuit board.

Repair Approach

Initial repairs involved replacing faulty components such as diodes and attempting to repair damaged traces. However, some unit failures were Beyond Economic Repair (BER) due to extensive damage or non-functional modules. Repairs also included cleaning and assessing the condition of various electrical components.

Testing & Quality

All repaired units underwent testing to verify the effectiveness of the repair work. Unfortunately, several units were returned unrepaired or recycled here at no charge due to irreparable issues or insufficient customer problem descriptions. It is important to provide detailed problem descriptions to aid in effective diagnosis and repair.

Limited Repair

The Milwaukee Electric Tool part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:

  • Availability of parts
  • Less than 100% test ability due to required support equipment

To have us attempt a repair on your Milwaukee Electric Tool part follow these steps:

Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 - Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 - Mail the box to the address on the RMA.

After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
