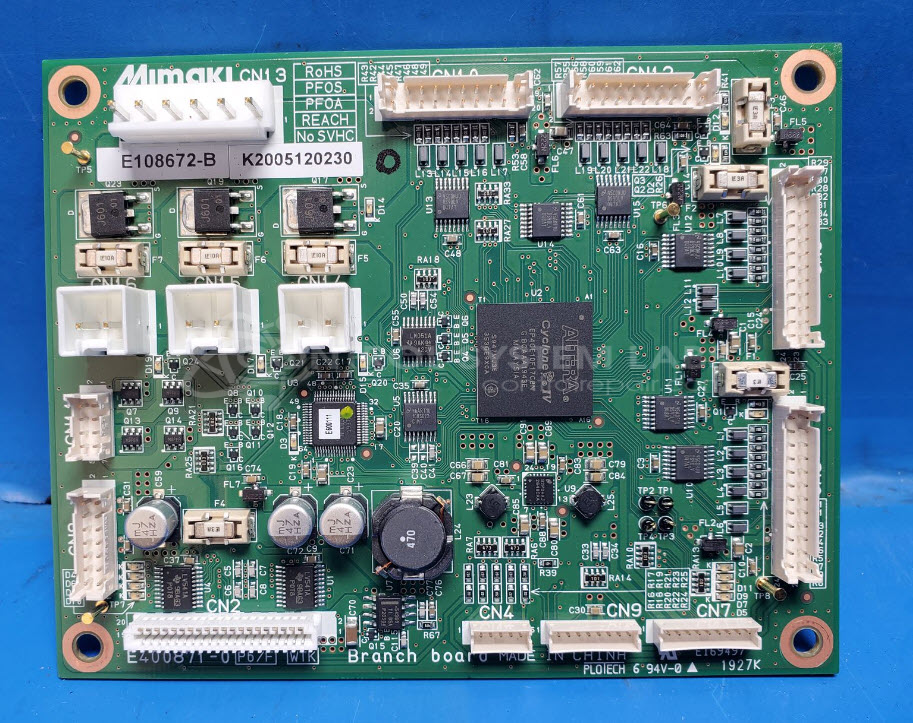

Mimaki E108672-B Branch Board
Repair
Call for price
Purchase
CSL Part Number: 100260
Product Overview: The Mimaki Branch Board (E108672-B) is a control board used in Mimaki wide-format printers and cutting plotters. It manages power distribution and signal routing between the main controller and various subsystems such as print heads, motors, and sensors. This board acts as an interface hub, branching control signals and power to multiple components within the machine. It is essential for coordinating operations in digital printing and cutting equipment used in signage, textile, and graphics production applications.
Category: Control Board
Manufacturer: Mimaki
Manufacturer Part Number: E108672-B
Also Known As(AKA): E400871-0
Please include wiring diagrams schematics for the machine this is used in.
Common Failures
Units may experience blown fuses. This can result from electrical surges or component stress.
Repair Approach
When a blown fuse is identified during evaluation, the repair typically involves replacing the affected fuse. We can evaluate the item and provide a quotation before any repair work begins.
Limited Repair
The Mimaki part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Mimaki part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
