Repair
Repair Price: $ 320.00
Purchase
CSL Part Number: 27646

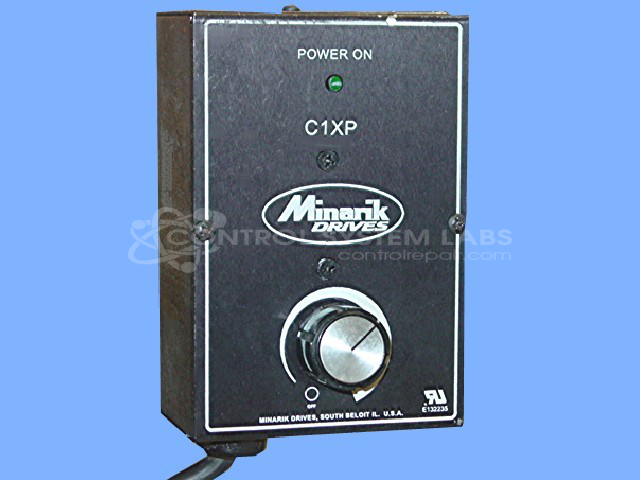

Product Overview: A fractional horsepower DC motor speed control that regulates the velocity of small DC motors from a 115 VAC input. It provides adjustable speed control via a potentiometer and on/off switching, used in conveyors, pumps, and light industrial machinery requiring variable DC drive.
Category: DC Motor Controls
Manufacturer: Minarik
Manufacturer Part Number: C1XP03-115AC-A
Common Failures
Common issues observed with this product include burnt resistors and speed control component failures. Additional findings have included shorted outputs and solder joint failures.
Repair Approach
Repairs typically involve the replacement of damaged resistors and transistors, along with re-soldering of solder joints. Specific repairs have included replacing burnt resistors and faulty transistors, ensuring proper insulation, and verifying the functionality of DC supplies. Extended testing is conducted following repair work.
Testing & Quality
Following repair, units undergo testing to verify operational integrity. This includes running the device for extended periods, such as a 30-minute burn-in or up to 2-hour operational verification. This process is intended to verify that repair work meets quality standards and that the unit functions correctly before being returned.
Service and repair your broken Minarik part
We can repair your Minarik model C1XP03-115AC-A in our facility. Let our skilled technicians get your Minarik back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
