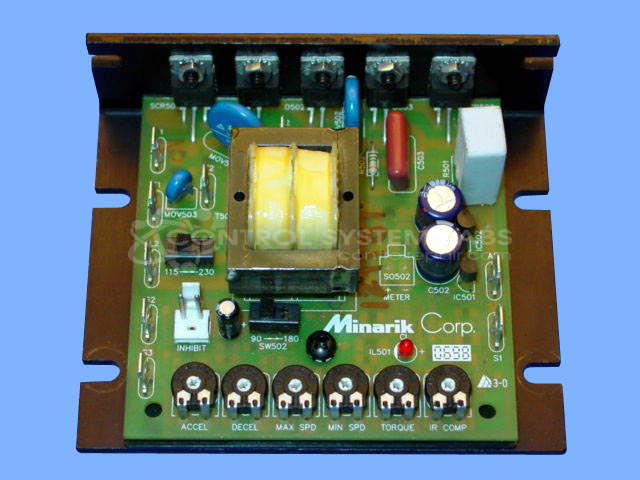

Minarik MM23001(X) DC Motor 0.5 HP to 2 HP
Repair
Repair Price: $ 352.00
Purchase
CSL Part Number: 4464
Product Overview: An analog DC motor speed control (drive) for permanent magnet and shunt-wound DC motors rated 0.5 to 2 HP. It regulates armature voltage for variable-speed operation, with adjustable maximum speed and field output up to 90/180V. Used in conveyors, process lines, and paper-handling equipment on 115/230VAC input.
Category: DC Motor Controls
Manufacturer: Minarik
Manufacturer Part Number: MM23001(X)
Common Failures
Common issues observed with this product include control circuit problems such as damaged circuit board traces, defective diodes, and compromised solder joints. Faulty speed potentiometers and component failures may also affect operation.
Repair Approach
Repairs typically involve replacing damaged components such as diodes, SCRs, and capacitors. Compromised solder joints are repaired to restore stable connections. Components are replaced as needed based on evaluation findings.
Testing & Quality
After repairs, units are tested to verify functionality. Testing procedures may include extended run periods and adjustments to meet specified voltage outputs. Units are cleaned and inspected before return to service.
Service and repair your broken Minarik part
We can repair your Minarik model MM23001(X) in our facility. Let our skilled technicians get your Minarik back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
