Minarik MM23011(X) DC Motor 1/8 to 0.25 HP

Repair

Repair Price: $ 324.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/24122/image_1920?unique=2657a56
  • Condition

Purchase Price: $ 0.00 $ 0.00 324.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 4463

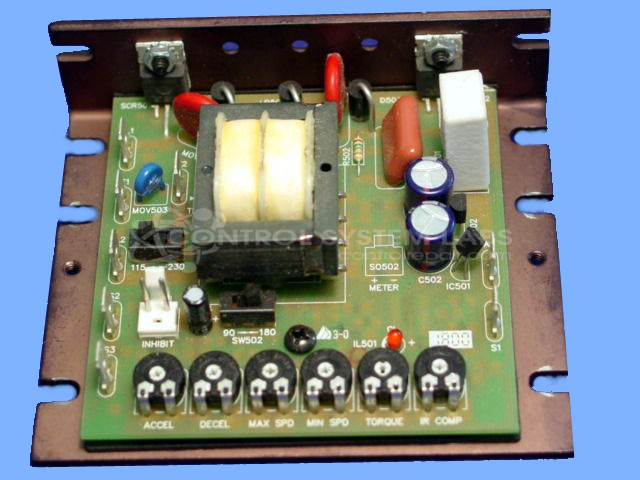

Product Overview: A variable-speed DC motor control (drive) for permanent magnet and shunt-wound DC motors rated 1/8 to 1/4 HP. It regulates armature voltage and speed with adjustable acceleration, deceleration, minimum speed, and IR compensation. Operates on 115/230 VAC input, delivering 90 or 180 VDC output. Common in conveyors and general machinery.
Category: DC Motor Controls
Manufacturer: Minarik
Manufacturer Part Number: MM23011(X)

Common Failures

This product commonly exhibits issues such as control problems, DC supply shorts, diode shorts, and broken solder connections. Reported malfunctions include voltage drops and motor start issues. These problems are often related to shorted components such as SCRs, diodes, and capacitors.

Repair Approach

The repair process typically involves replacing faulty components such as capacitors, diodes, resistors, and integrated circuits. The PCB may be resoldered to address broken connections. Components are replaced as needed based on evaluation findings.

Testing & Quality

Repaired units undergo testing to verify proper operation. These tests include verifying DC supplies and confirming input and output operation. Units may undergo extended operational runs to confirm performance before return shipment.

Service and repair your broken Minarik part


We can repair your Minarik model MM23011(X) in our facility. Let our skilled technicians get your Minarik back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
