Home >  Minarik MM23101(X) DC Motor Control 0.5 to 2 HP

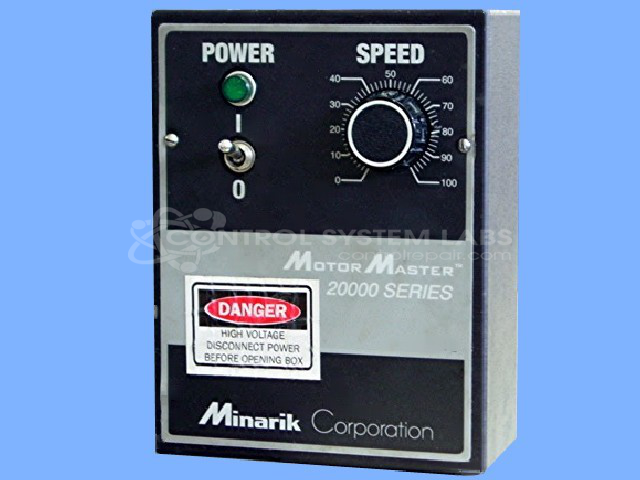

Minarik MM23101(X) DC Motor Control 0.5 to 2 HP

Repair

Repair Price: $ 340.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/24124/image_1920?unique=f0434ed
  • Condition

Purchase Price: $ 0.00 $ 0.00 340.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 4465
Product Overview: An SCR-based variable speed drive for DC motors rated 0.5 to 2 HP. It regulates motor speed by converting AC input to adjustable DC output, typically up to 90 or 180 volts. Features a 10k speed potentiometer and fused protection, used in industrial paper and machinery applications.
Category: DC Motor Controls
Manufacturer: Minarik
Manufacturer Part Number: MM23101(X)
Series: MotorMaster 200000 Series DC Motor Control

Common Failures

This product has historically shown a few recurring issues. Common symptoms include burned traces, open resistors, shorted components such as SCRs and transistors, poor solder joints, missing components, and reports of no DC power output when AC power is supplied.

Repair Approach

Repairs typically involve replacing faulty components such as capacitors, resistors, and integrated circuits. Work may also include repairing traces, resoldering connections, and replacing missing hardware. Cleaning and recalibration are performed as needed. Each unit is tested under load conditions following repair work.

Testing & Quality

After repairs, units undergo testing to verify operational integrity. This includes burn-in testing under load conditions using motors of various voltages to confirm functionality aligns with design specifications.

Service and repair your broken Minarik part


We can repair your Minarik model MM23101(X) in our facility. Let our skilled technicians get your Minarik back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
