Repair
Repair Price: $ 368.00
Purchase
CSL Part Number: 23156

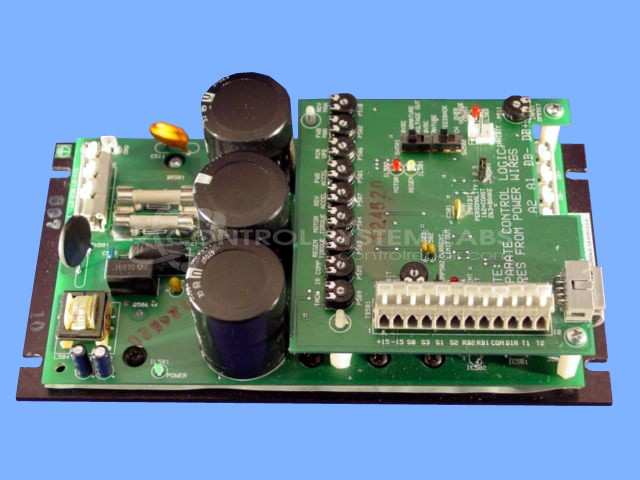

Product Overview: The Minarik NRG05-D240AC-4Q is a 5-horsepower, 240VAC input, four-quadrant regenerative DC motor drive from the NRG-4Q series. It provides bidirectional torque and speed control, allowing motors to operate in both forward and reverse directions while regenerating energy back to the AC line during braking. Commonly used in paper handling, web tension control, winding/unwinding systems, and other applications requiring precise speed regulation and dynamic braking. The drive features MOSFET-based power conversion for efficient motor control.
Category: DC Motor Controls
Manufacturer: Minarik
Manufacturer Part Number: NRG05-D240AC-4Q
Series: NRG-4Q Series DC Drive
Common Failures
Units have sometimes failed due to shorted FETs, leading to circuit trips when powered on. This issue typically points to a defect within the power drive section.
Repair Approach
The repair process may involve replacing malfunctioning FET components and electrolytic capacitors. Additionally, the unit may undergo cleaning and resoldering of connections as necessary. Each unit is evaluated to determine the appropriate repair.
Testing & Quality
Post-repair, testing is conducted to verify unit operation. This includes running the unit under load conditions to verify performance across all functions. Testing duration and methods vary based on the specific repair and unit type.
Service and repair your broken Minarik part
We can repair your Minarik model NRG05-D240AC-4Q in our facility. Let our skilled technicians get your Minarik back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
