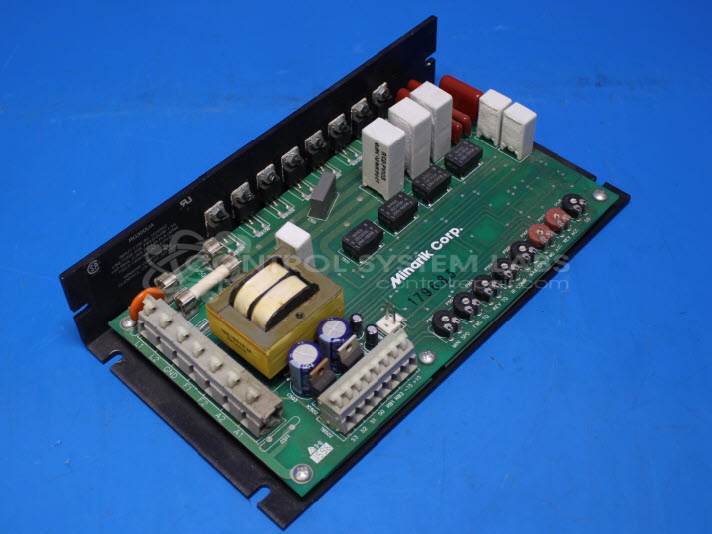

Minarik RG300UA Fractional HP DC Motor

Repair

Repair Price: $ 412.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/37752/image_1920?unique=32ff08a
  • Condition

Purchase Price: $ 0.00 $ 0.00 412.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 18514
Product Overview: A fractional horsepower DC motor speed control drive that regulates motor speed and direction via a potentiometer input, supporting bidirectional operation with adjustable acceleration. Commonly used to drive carriage and press-head motors in screen printing presses and similar motion equipment, with an isolated dry-contact inhibit circuit for start/stop control.
Category: DC Motor Controls
Manufacturer: Minarik
Manufacturer Part Number: RG300UA

Common Failures

Customers have reported various issues, including blown fuses, incorrect potentiometer wiring, shorted components, and corrosion on the circuit board. Specific symptoms include inoperative motors that control the movement of the carriage and erratic operations in motor speed and direction.

Repair Approach

Common repairs have involved replacing blown fuses, shorted transformers, and faulty integrated circuits like the LM324. Additional steps have included correcting wiring errors and replacing worn or corroded components such as capacitors. Where applicable, incorrect acceleration potentiometers have been adjusted to ensure correct range and operation.

Testing & Quality

Repaired units undergo testing to verify operational performance. This includes extended burn-in periods of 1 to 4 hours, vibration tests, and comprehensive checks with motors. Each repair is reviewed to address the reported problem and restore proper functionality.

Service and repair your broken Minarik part


We can repair your Minarik model RG300UA in our facility. Let our skilled technicians get your Minarik back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
