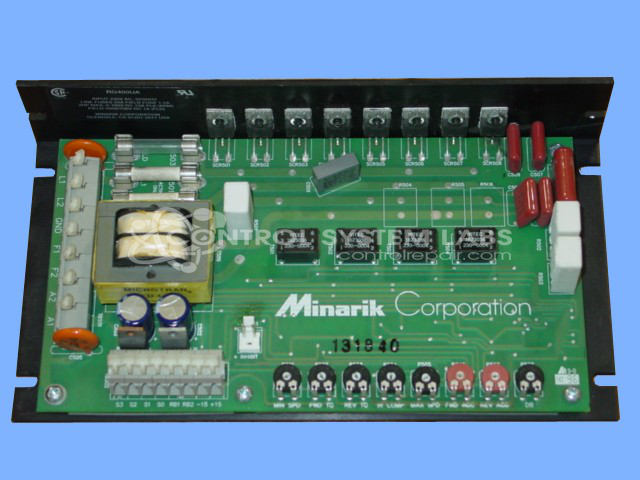

Minarik RG400UA Fractional HP DC Motor
Repair
Repair Price: $ 408.00
Purchase
CSL Part Number: 22632
Product Overview: A fractional horsepower DC motor speed control that converts AC line input into adjustable DC output to regulate motor speed and direction. Supports bidirectional operation with a minimum-speed adjustment potentiometer and typical 180-volt DC output. Used in conveyors, pumps, and general industrial machinery.
Category: DC Motor Controls
Manufacturer: Minarik
Manufacturer Part Number: RG400UA
Common Failures
Frequently reported issues include erratic speed, no DC output, and excess voltage output. These issues may stem from faulty capacitors, incorrect fuse values, and worn potentiometers.
Repair Approach
Repairs may involve replacing damaged capacitors, fuses, and potentiometers. Resistor leads, varistors, and transformers have also been replaced to restore functionality. In cases with no apparent fault, thorough cleaning and adjustments to output have been effective solutions.
Testing & Quality
Repairs are verified through testing, including burn-in sessions ranging from 30 minutes to several hours. Testing procedures ensure components function properly, with repeated checks under different conditions to support reliable operation.
Service and repair your broken Minarik part
We can repair your Minarik model RG400UA in our facility. Let our skilled technicians get your Minarik back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
