Repair
Repair Price: $ 824.00
Purchase
CSL Part Number: 86069

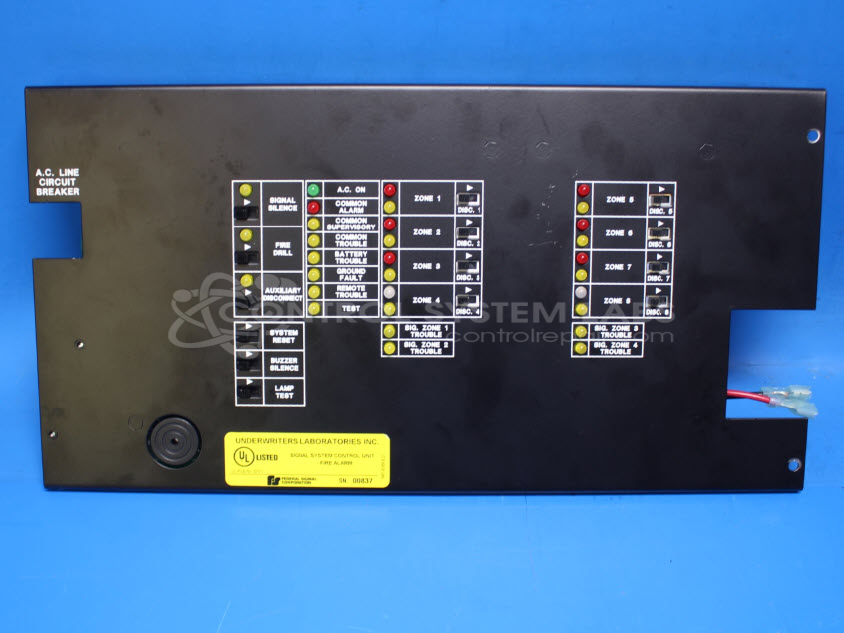

Product Overview: The Mircom FA-200 is a fire alarm control panel consisting of an MD-585 main board and MD-595 expansion board. It monitors initiating device circuits (zones) for fire detection sensors and pull stations, providing alarm indication and control outputs. The system operates on 24VAC with battery backup and includes ground fault monitoring for field wiring. Common configurations support multiple zones with individual disconnect switches and LED status indicators for trouble, alarm, and supervisory conditions.
Category: Operator & Control Panels
Manufacturer: Mircom
Alternate Manufacturer Names: Federal Signal Corp.
Manufacturer Part Number: FA-200 / MD-585 main & MD-595 expansion
Also Known As(AKA): Mircom Technologies Ltd FA-200
Other Synonyms: Federal Signal Corp.
Common Failures
Typical issues with this unit include failed MOVs (metal oxide varistors) on the expansion board, damaged circuit board traces, and "Common Trouble" or "Ground Fault" alarms. These alarms may reflect issues with external wiring or sensors rather than the unit itself. Additionally, problems with momentary switches and front plates have been noted.
Repair Approach
Repairs often involve replacing defective MOVs, repairing circuit board traces, and addressing issues with the front plate and switches. Proper connections and secure ground screws are verified during reassembly. Units that have been modified or have had board swaps performed by others may require additional evaluation, as they may involve different components or configurations.
Testing & Quality
Post-repair, units undergo testing to verify stability and operation. This includes powering up the unit, performing lamp tests, checking all zones, and running diagnostic procedures. If issues cannot be resolved through standard repair methods, the unit may be returned unrepaired with an explanation of findings.
Service and repair your broken Mircom part
We can repair your Mircom model FA-200 / MD-585 main & MD-595 expansion in our facility. Let our skilled technicians get your Mircom back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
