Misc 2183 REV. A Elevator I/O Board
Repair
Call for price
Purchase
CSL Part Number: 105615

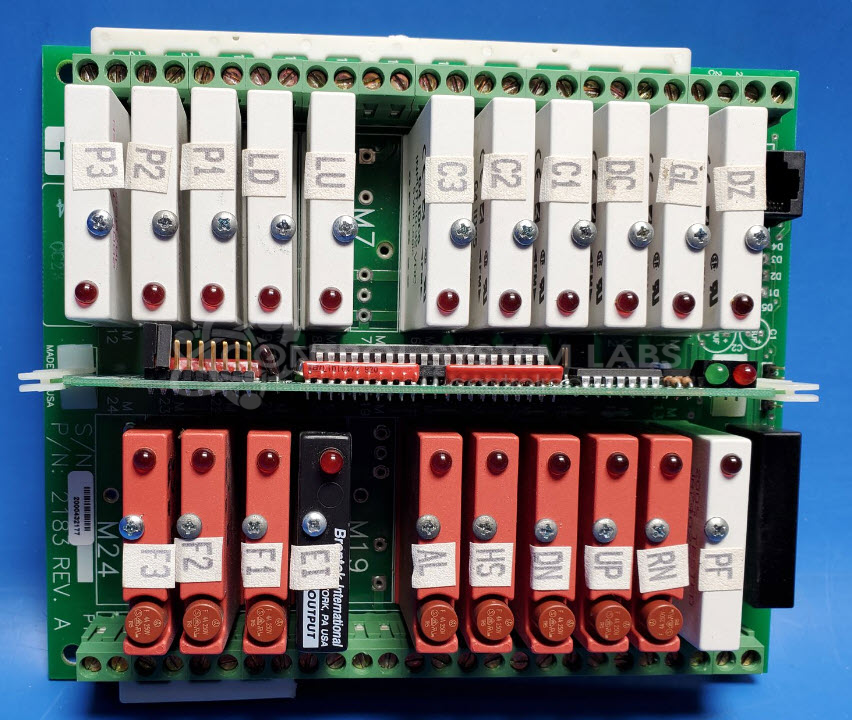

Product Overview: The Elevator I/O Board (part number 2183 REV. A) is an input/output control board based on the CEC SMI and SMIC architecture used in Futura model elevator control systems. It processes digital inputs and outputs through modular G4 IDC5 input modules and G4 ODC5 output modules, operating on 24 VDC input power while providing 5 VDC logic signals. The board features an 8052-derivative microcontroller that manages communication and logic functions, indicated by an onboard LED. It interfaces with various elevator system components including relays and sensors to coordinate elevator operation and safety functions.
Category: Control Board
Manufacturer: Misc
Manufacturer Part Number: 2183 REV. A
Limited Repair
The Misc part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Misc part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
