CSL Part Number: 82592

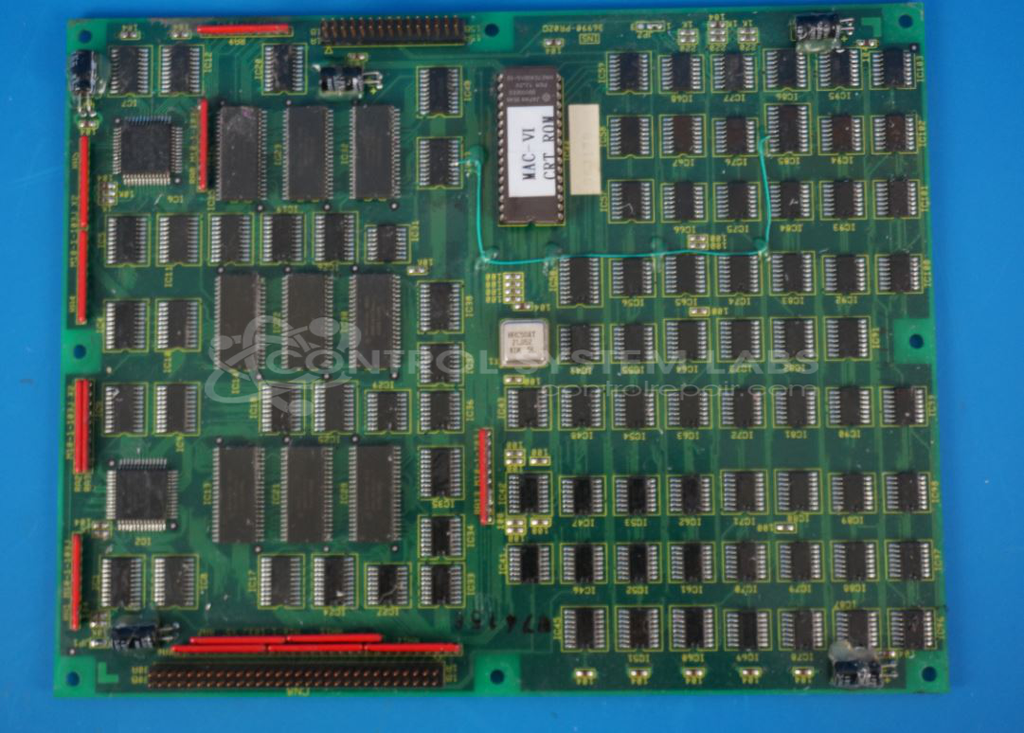

Product Overview: A microprocessor-based control board forming the bottom half of a paired assembly used in industrial machine control systems. It manages core processing functions, supporting VGA video output and RS232 serial communication, and operates from a 5VDC supply drawing approximately 650mA.
Category: Control Board
Manufacturer: Mitsubishi
Manufacturer Synonyms: Mitsubishi Electric Corp
Manufacturer Part Number: 36990-PR02D
Also Known As(AKA): 36990-PR02C
Please send in both boards of the 2 board set.
Common Failures
Two primary failure symptoms have been observed for this product. One issue involves the device not powering up; the power supply voltage is drawn down, preventing the unit from starting. Another issue is related to the screen going black after a period of operation.
Repair Approach
For the power-up issue, the repair process involves verifying the problem and ensuring proper operation by powering the board with adequate voltage and verifying display and communication functionalities. For the screen failure, repair may include replacing electrolytic capacitors followed by a thorough burn-in test to evaluate stability and reliability.
Testing & Quality
Repairs include verification steps such as monitoring power levels, visual display, and communication tests to confirm issues. Post-repair testing procedures evaluate functionality and stability, which may involve extended operational testing.
Service and repair your broken Mitsubishi part
We can repair your Mitsubishi model 36990-PR02D in our facility. Let our skilled technicians get your Mitsubishi back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
