Repair
Repair Price: $ 812.00
Purchase
CSL Part Number: 12606

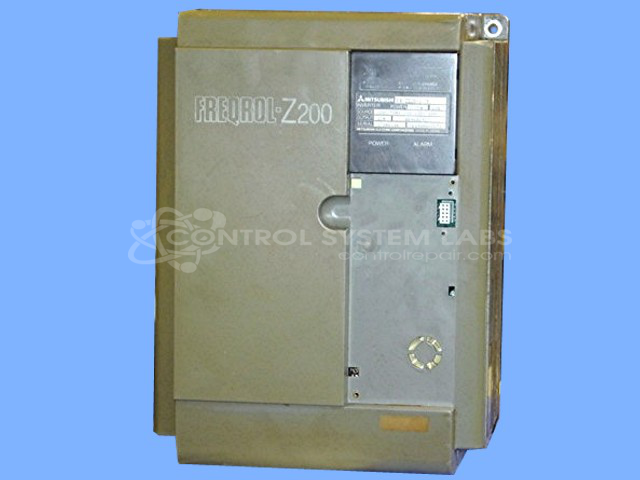

Product Overview: A three-phase 5 HP (3.7 kW) VVVF AC inverter drive that uses variable voltage, variable frequency control to regulate the speed and torque of AC motors, including main spindle drives on industrial machine tools. Features output current monitoring and alarm diagnostics for motor protection.
Category: AC Motor Controls
Manufacturer: Mitsubishi
Manufacturer Synonyms: Mitsubishi Electric Corp
Manufacturer Part Number: FR-Z220-3.7K
Series: FREQROL Z200 VVVF Inverter
Common Failures
This unit type has been observed to experience a main spindle alarm that activates when the main spindle is powered on. This condition has been associated with a shorted power module and defective hybrid chip components.
Repair Approach
Repairs typically include replacement of the power module, hybrid chips, opamps, and capacitors as needed. The chassis is cleaned to address any residual contamination. Component replacement and repair work is performed following CSL's established repair procedures.
Testing & Quality
Following component replacement and cleaning, repairs are validated through testing. Motor output is verified for functionality in both directions. Operational testing is conducted to evaluate reliability before the unit is returned.
Service and repair your broken Mitsubishi part
We can repair your Mitsubishi model FR-Z220-3.7K in our facility. Let our skilled technicians get your Mitsubishi back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
