Repair
Repair Price: $ 1,712.00
Purchase
CSL Part Number: 75701

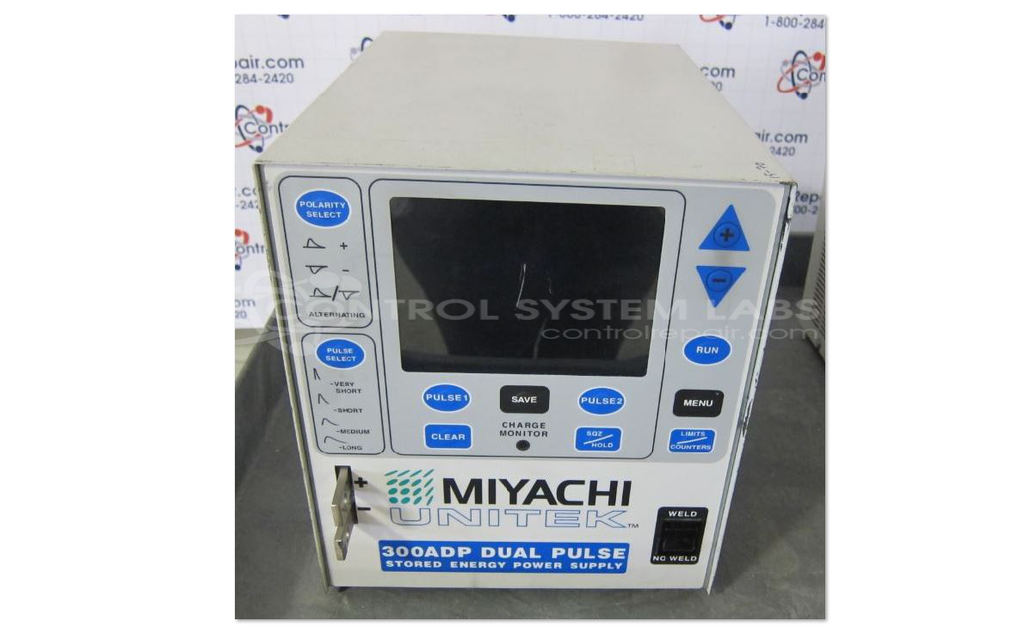

Product Overview: The 300ADP is a capacitive discharge welder manufactured by Miyachi Unitek for resistance spot welding and joining applications. It uses stored energy in bulk capacitors to deliver high-current, short-duration pulses suitable for welding small metal components and assemblies. The system includes energy storage circuitry with IGBTs for discharge control, a charging circuit with monitoring capabilities, and programmable weld parameters accessible through a digital display interface. Common applications include electronics manufacturing, medical device assembly, and precision metal fabrication where controlled heat input is critical.
Category: Welders
Manufacturer: Miyachi Unitek
Manufacturer Synonyms: Miyachi Unitek Corp.
Manufacturer Part Number: 1-296-01
Include welding gun to aid repair.
Common Failures
Common symptoms for this product include charge problems upon startup and failure to weld. These issues can often be attributed to environmental contamination causing component damage. Inspection may reveal damage on the bulk capacitor energy storage board and related components.
Repair Approach
The repair process typically involves replacing defective components such as diodes, resistors, and IGBT transistors. Thorough cleaning of environmental debris and re-soldering of poor connections are essential steps. The PCB is cleaned and defluxed, and thorough testing of capacitors and other components is performed. Any stressed PCB traces are repaired as needed.
Testing & Quality
After repairs, the unit undergoes extensive testing, including powering up to ensure display functionality and performing welding in various modes. Repairs are verified when the unit can weld small metal pieces together and attain proper bus capacitor voltage levels.
Service and repair your broken Miyachi Unitek part
We can repair your Miyachi Unitek model 1-296-01 in our facility. Let our skilled technicians get your Miyachi Unitek back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
Once the user has seen at least one product this snippet will be visible.
