Home >  Monarch Instrument 6204-110 Digital Stroboscope 30-20000 FPM

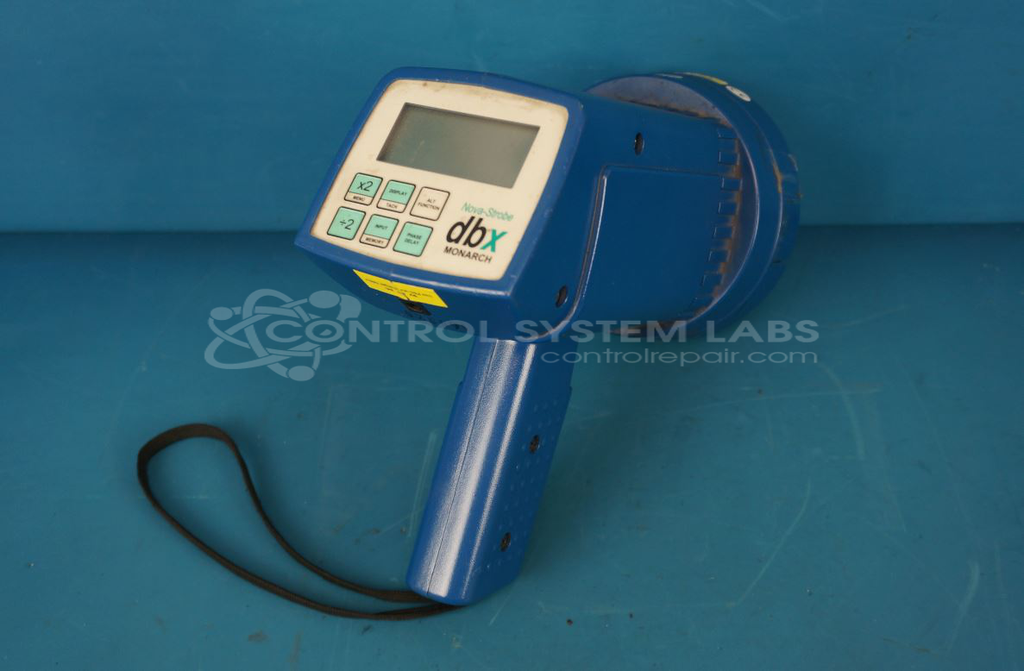

Monarch Instrument 6204-110 Digital Stroboscope 30-20000 FPM

Repair

Repair Price: $ 484.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/97229/image_1920?unique=1b5770e
  • Condition

Purchase Price: $ 0.00 $ 0.00 484.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 76880
Category: Strobes
Manufacturer: Monarch Instrument
Alternate Manufacturer Names: dbx Monarch Specialties
Manufacturer Part Number: 6204-110
Other Synonyms: dbx Monarch Specialties

Common Failures

Frequent issues observed with this product include intermittent power failures, with the unit sometimes failing to turn on or staying on. Customers also reported hearing a rattling sound when handling the product. In another instance, the unit suffered from physical damage, specifically a broken front cover.

Repair Approach

Intermittent operation issues were primarily due to loose wires on the ON/OFF switch. The repair involved cleaning, inspection, and tightening these wires. The unit was then thoroughly tested to ensure functionality, including verifying flash rates and pulse operations. Units with significant physical damage, such as a broken front cover, were evaluated and determined to be Beyond Economic Repair.

Testing & Quality

Post-repair, the units underwent extensive testing to verify their operations. This included checking flash rates and pulse timings, ensuring stable voltage, and conducting over a dozen burn-in tests to confirm reliability and performance consistency.

Service and repair your broken Monarch Instrument part


We can repair your Monarch Instrument model 6204-110 in our facility. Let our skilled technicians get your Monarch Instrument back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
