Monitronix Unknown Relay/Annunciator Board
Repair
Call for price
Purchase
CSL Part Number: 104984

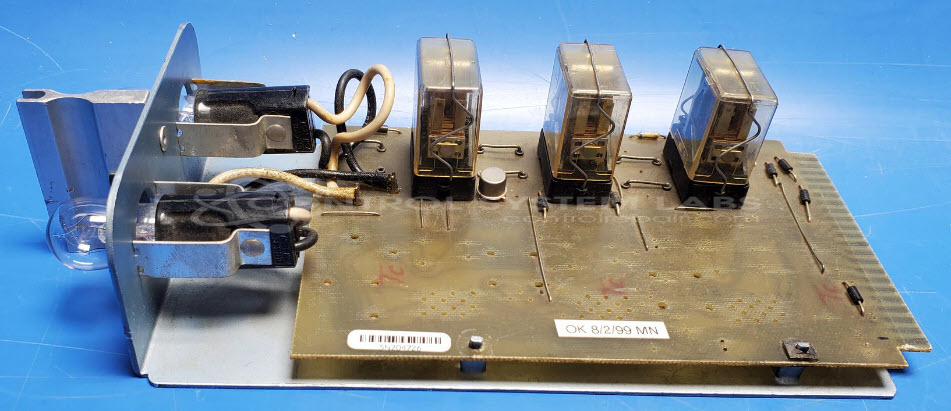

Product Overview: The Monitronix Relay/Annunciator Board is an industrial control panel component that provides visual alarm indication and relay switching functions. It features two indicator lamps for status monitoring and three electromechanical relays for controlling external equipment or circuits. This board is typically used in industrial alarm systems, process control panels, and monitoring applications where visual annunciation and relay logic are required for safe equipment operation.
Category: Annunciator
Manufacturer: Monitronix
Manufacturer Part Number: Unknown
Common Failures
The most frequent issue reported with this product is related to the annunciator card, primarily due to defective solder joints and dirty relay contacts.
Repair Approach
The standard repair procedure involves resoldering connections as needed and cleaning the relays and board. Time and Materials work is billed for labor and material spent attempting repair and is not warrantied.
Testing & Quality
After repairs are completed, the components undergo a series of tests, including energizing relays and bulbs, checking contact resistance, and testing diodes and transistors, to verify functionality.
Service and repair your broken Monitronix part
We can repair your Monitronix model Unknown in our facility. Let our skilled technicians get your Monitronix back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
