Repair
Repair Price: $ 760.00
Purchase
CSL Part Number: 2298

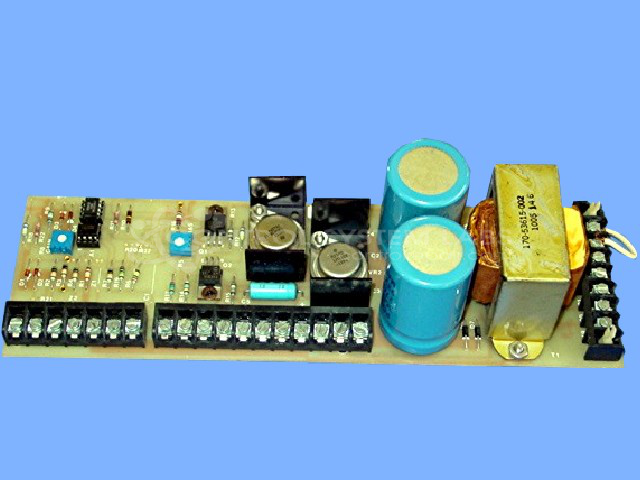

Product Overview: The Moog 121-103 is a combined power supply and amplifier board used in servo control applications. It provides regulated DC power output while also amplifying control signals for servo motor systems. This board is commonly found in paper manufacturing equipment and other industrial machinery requiring precise motion control. It features multiple output voltages with AC input through barrier strip connections and includes integrated operational amplifiers for signal conditioning. The unit is designed for continuous operation under load in demanding industrial environments.
Category: Power Supply
Manufacturer: MOOG
Manufacturer Part Number: 121-103
Series: Power Supply / Amplifier
Also Known As(AKA): A32620-001
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
Common issues reported include unstable servo output, burnt components, and broken connections. Typical findings during evaluation have included defective solder joints and burnt resistors.
Repair Approach
Repairs may involve resoldering defective joints and replacing burnt resistors. Connections are resoldered as needed to restore reliability. Components are tested under load to verify proper function.
Testing & Quality
Units undergo burn-in testing with the appropriate load to confirm stability and proper operation. Repairs are verified using diagnostic tools such as oscilloscopes and digital multimeters to ensure compliance with operational standards.
Service and repair your broken MOOG part
We can repair your MOOG model 121-103 in our facility. Let our skilled technicians get your MOOG back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
