Repair
Repair Price: $ 784.00
Purchase
CSL Part Number: 47300

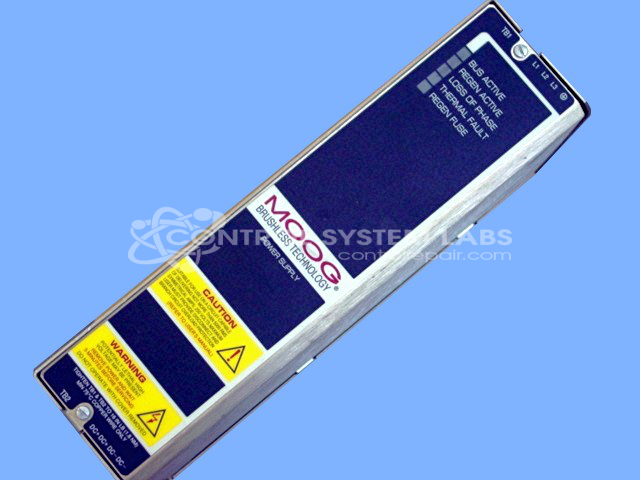

Product Overview: Digital brushless motor power supply that converts incoming AC into a high-voltage DC bus, delivering regulated output around 300VDC to drive servo motors. It features an integrated regenerative (regen) circuit for motor deceleration and over-voltage management, with LED power-on status indication. Used in industrial automation and robotic servo systems.
Category: Power Supply
Manufacturer: MOOG
Manufacturer Part Number: 150-201D-01
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
The most frequent issues involve output problems where the regeneration system fails to properly operate the motor deceleration servo drive. This is often linked to an over voltage condition. Specific causes include failed capacitors on the circuit board and damage to surface-mount components due to excessive voltage.
Repair Approach
When output problems are detected, an initial check for faulty components, such as capacitors, is performed. In cases where failed capacitors are found, they are replaced to restore the supply voltage for the logic board. This often resolves issues related to power output failures.
Testing & Quality
After repairs, units are tested to verify output under load conditions. Power is applied to check that output reaches approximately 300VDC without load, with confirmation of power status. These procedures help verify that the unit is functioning as expected.
Beyond Economic Repair
In cases where excessive voltage causes severe damage, including failed control circuits and multiple component failure, the unit may be evaluated as Beyond Economic Repair and returned unrepaired.
Service and repair your broken MOOG part
We can repair your MOOG model 150-201D-01 in our facility. Let our skilled technicians get your MOOG back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
