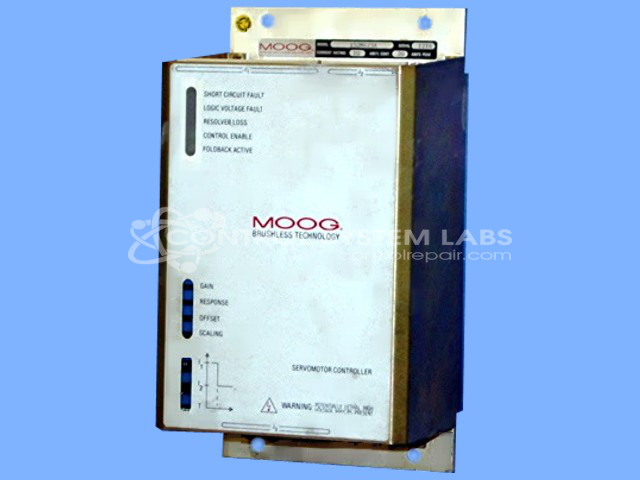

MOOG 152D413A 152-400 5AMP Servo Control
Repair
Repair Price: $ 1,740.00
Purchase
CSL Part Number: 70704
Product Overview: A brushless servo motor controller rated at 5 amps, providing closed-loop control of servo motors in industrial automation and motion control systems. It regulates motor torque, speed, and position, and typically operates alongside a shared power supply module and transformer in multi-axis configurations.
Category: Servo Controls
Manufacturer: MOOG
Manufacturer Part Number: 152D413A
Series: 152 Series Servo
Common Failures
One commonly reported issue with this product is a Logic Voltage Fault. In some instances, no technical faults are detected during inspection. It is essential to check associated wiring, the Power Supply Module, and the Transformer, as these components are frequently linked to the fault.
Repair Approach
As part of the repair process, multiple components were replaced or upgraded to enhance reliability. Specifically, several capacitors were upgraded from 85°C to 105°C as a preventive measure. This upgrade is intended to improve the product's performance and longevity under higher temperature conditions.
Testing & Quality
Post-repair, all components and connections were thoroughly verified, including DC power supplies and operational checks. The unit was tested for two hours with a servo motor, confirming proper function following repairs.
Service and repair your broken MOOG part
We can repair your MOOG model 152D413A in our facility. Let our skilled technicians get your MOOG back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
