Repair Price: $ 1,196.00
Purchase
CSL Part Number: 113972

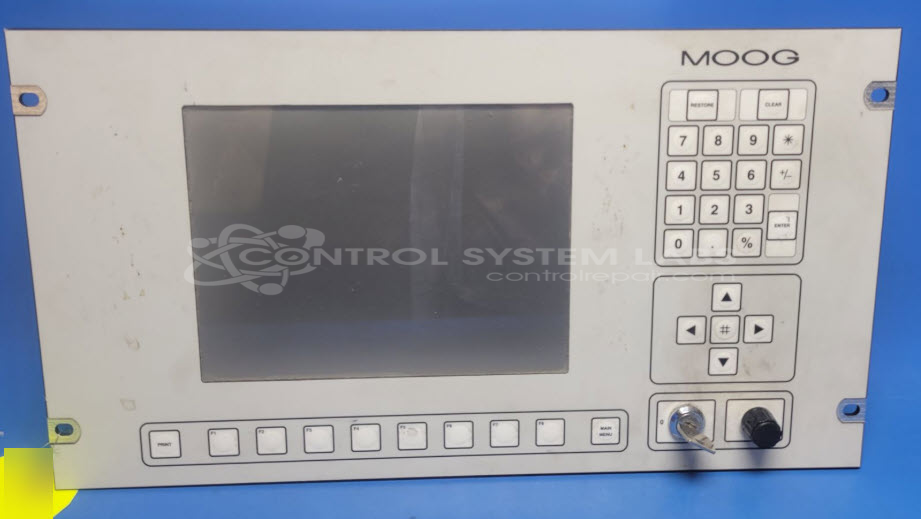

Product Overview: The MOOG D143-800-A004 is an operator interface panel featuring a 10.4-inch display with membrane keypad and RS-422 serial communication. It operates on 24VDC and uses VGA input for the display. The unit communicates via RS-422 at 2400 baud, with outputs triggered by keypad button presses. Commonly found in industrial machine control applications requiring operator interaction and visual feedback. The panel includes adjustable screen brightness and uses CCFL backlighting technology.
Category: Operator & Control Panels
Manufacturer: MOOG
Manufacturer Part Number: D143-800-A004
Series: MOOG D143 CONTROL
Also Known As(AKA): Fl.displ.TMC10.4
Common Failures
Units may exhibit display issues such as flickering or image quality concerns. Keypad malfunctions can occur, including unresponsive buttons or physical damage during handling. Contamination from dirt and dust may contribute to operational issues.
Repair Approach
Repairs may involve replacing components such as capacitors and connectors as needed. Keypad concerns are addressed through overlay replacement and proper installation procedures. Display issues are evaluated and may require component replacement and cleaning.
Testing & Quality
Diagnostic testing is performed to verify keypad functionality and display performance. Keypad buttons are tested for proper signal output. Displays are assessed for consistent operation and retested after reassembly. Visual inspections and functional testing are conducted to confirm unit performance. Units undergo burn-in testing as appropriate.
Service and repair your broken MOOG part
We can repair your MOOG model D143-800-A004 in our facility. Let our skilled technicians get your MOOG back in operation quickly.
