Repair
Repair Price: $ 316.00
Purchase
CSL Part Number: 50033

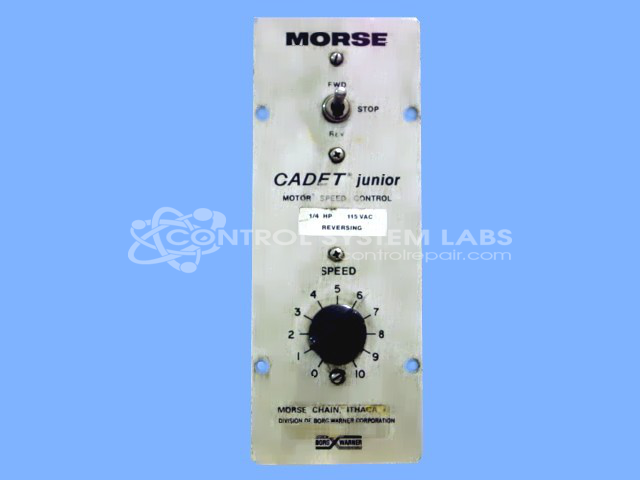

Product Overview: The Morse Cadet Junior 190901 is a 0.25 HP variable speed DC motor controller designed for 115VAC input. It features reversing capability, speed adjustment from 0-10, and a high-speed override function. Commonly used in pull test machines and similar industrial applications requiring precise motor control. The unit utilizes analog circuitry with op-amps and transistor arrays for speed regulation. Most replacement components are readily available, though reversing switches may be limited on certain models. This controller provides reliable, serviceable DC motor speed control for fractional horsepower applications.
Category: DC Motor Controls
Manufacturer: Morse
Manufacturer Part Number: 190901
Common Failures
This motor speed control unit is commonly found in pull test machines. Damage may include non-functionality due to burned diodes and resistors, as well as defective capacitors and operational amplifiers. Issues typically arise from component failure, which can lead to visible damage on the control card.
Repair Approach
The typical repair process involves replacing defective components such as electrolytic capacitors and operational amplifiers. In addition to addressing the immediate defects, preventative replacement of trimmer potentiometers may be conducted to enhance long-term reliability.
Testing & Quality
After repair, units undergo testing, including a burn-in test with a 90V DC motor and a 100W bulb load to verify functionality. Each repaired unit is checked for quality assurance before being returned to the customer.
Service and repair your broken Morse part
We can repair your Morse model 190901 in our facility. Let our skilled technicians get your Morse back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
