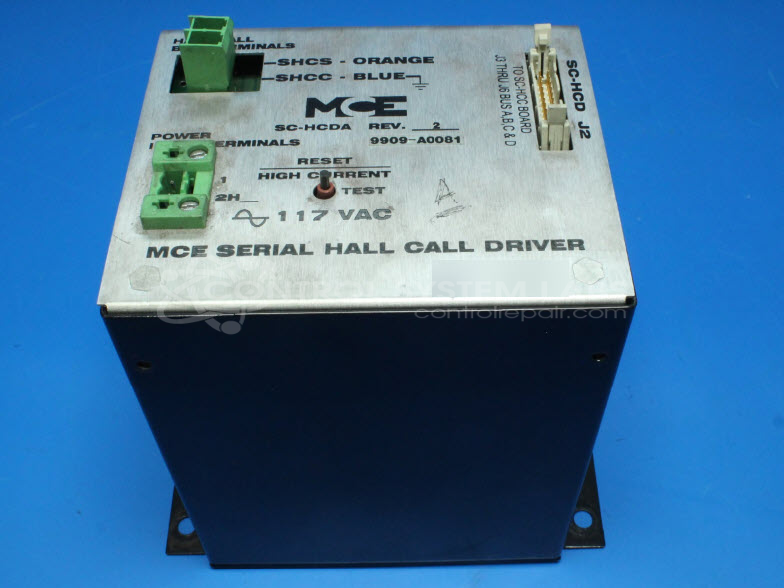

Motion Control Engineering 9909-A0081 SERIAL HALL CALL DRIVER
Repair
Call for price
Purchase
CSL Part Number: 85213
Product Overview: A serial hall call driver control module used in elevator control systems. It manages hall call signals between landing stations and the main elevator controller over a serial communication link, driving call button indicators and relaying passenger call requests. Includes onboard power supply circuitry providing regulated +15V and 41V rails.
Category: Control Module
Manufacturer: Motion Control Engineering
Manufacturer Synonyms: MCE
Manufacturer Part Number: 9909-A0081
Also Known As(AKA): SC-HCDA
Common Failures
This product has experienced issues primarily due to electrolytic capacitors being out of specification. Failures were noted in several capacitors, which contributed to the malfunctioning of the power supply.
Repair Approach
The power supply unit was disassembled to address the issue. Diodes, zeners, transistors, resistors, and resistor arrays were checked. Capacitors out of specification were replaced to restore proper function.
Testing & Quality
After repair, the power supply was tested. Voltage levels were verified at critical points, and logical levels were checked to ensure correct operation. The unit was powered on and controlled, confirming that the repair was completed. The product was then returned for customer testing.
Repair your broken Motion Control Engineering part
We can repair your Motion Control Engineering model 9909-A0081 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
