Repair
Repair Price: $ 1,294.00
Purchase
CSL Part Number: 115984
Product Overview: The MTS 100031143 G (also 100-030-587) is a switched-mode power supply module designed for MTS control systems. It operates from 85-264VAC input and provides multiple DC outputs including 5V at 5A, 12V, and 24V rails. The unit is housed in a DIN-mountable enclosure and contains two internal Lambda power supply modules (PN 40502 and 40475) along with control relays and switches. It features a troubleshooting port for diagnostic access and is commonly used in MTS test and measurement equipment.
Category: Power Supply
Manufacturer: MTS
Manufacturer Synonyms: MTS Systems Corporation, Amphenol

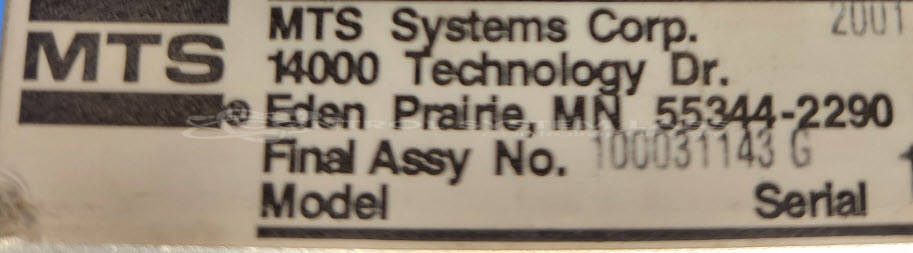

Manufacturer Part Number: 100031143 G

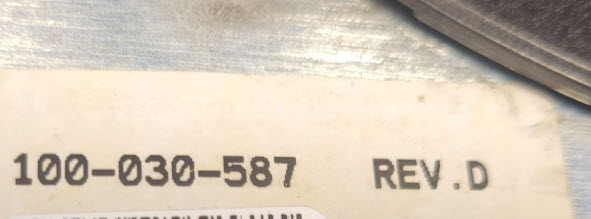

Also Known As(AKA): 100-030-587
Please include wiring diagrams for the equipment this was used with.
Common Failures
Common issues with this product include an inability to provide power to the control system and fluctuations in voltage output. Some units show no output or minimal voltage, which can affect the operation of dependent systems. In many cases, issues are related to capacitor or transistor problems that are identified during diagnostic testing.
Repair Approach
Standard repair procedures involve the replacement of defective components such as capacitors and transistors. Some repairs may require further evaluation if component replacement does not resolve the issue or if additional problems are discovered during the repair process. In such cases, we provide updated information to the customer regarding repair options.
Testing & Quality
Diagnostic testing is used to evaluate product failures. Tests include checking voltage levels across various outputs and employing tools such as multimeters to identify faulty components. We evaluate each unit based on the specific failure symptoms and provide quotations or recommendations based on our findings. Our team reviews difficult cases to determine the best course of action for each repair.
Service and repair your broken MTS part
We can repair your MTS model 100031143 G in our facility. Let our skilled technicians get your MTS back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
