Repair
Repair Price: $ 604.00
Purchase
CSL Part Number: 81775

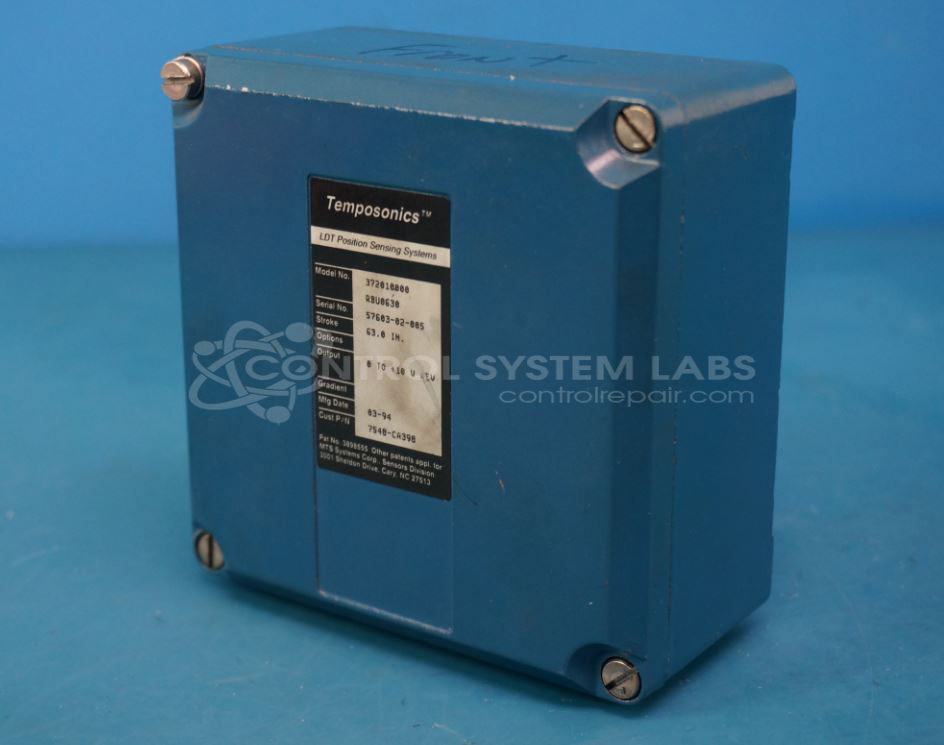

Product Overview: A linear position sensor interface module that conditions magnetostrictive transducer signals into an analog output, typically 0-10V, proportional to displacement over a 63-inch stroke range. Powered by 24VDC, it supports displacement measurement in industrial machinery such as paper and web-handling equipment.
Category: Control Assembly
Manufacturer: MTS
Manufacturer Synonyms: MTS Systems Corporation, Amphenol
Alternate Manufacturer Names: TEMPOSONICS
Manufacturer Part Number: 372010000
Brand: TEMPOSONICS
Also Known As(AKA): RBU0630
Other Synonyms: TEMPOSONICS
Common Failures
A recurring issue with this product involves output voltage inconsistencies. Customers have reported that the unit, which should generate a voltage range from 0-10V, may output incorrect voltages. Some units have experienced failures where no negative voltage was measured, pointing to specific component failures.
Repair Approach
Repairs typically involve replacing key components suspected to cause the output issues. In one instance, replacing certain components resolved the issue where no negative voltage output was present. Another repair involved replacing an operational amplifier and communication components, followed by cleaning and functional testing.
Testing & Quality
Each repair includes thorough testing to verify functionality. Repairs are validated through bench testing, often involving additional equipment such as oscilloscopes and function generators. After repairs, units are tested over several hours to ensure operational integrity and alignment with standard specifications. Tests confirm that measurements and signal outputs match expected values under various conditions.
Service and repair your broken MTS part
We can repair your MTS model 372010000 in our facility. Let our skilled technicians get your MTS back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
