Repair
Repair Price: $ 1,472.00
Purchase
CSL Part Number: 30764

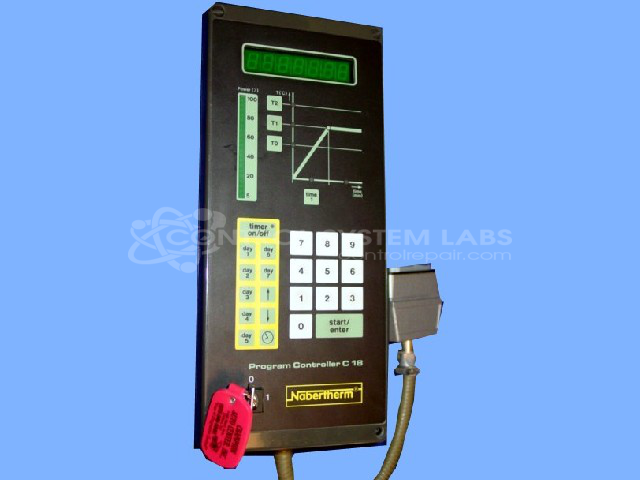

Product Overview: A programmable furnace controller used to set and regulate heat treatment cycles in industrial kilns and furnaces. It supports multiple temperature setpoints (low, operating, and high) with weekly timer scheduling, and features a keypad interface and temperature display for monitoring and process control.
Category: Pendant
Manufacturer: Nabertherm
Manufacturer Part Number: C18
Repairs are limited to available parts. Example: Keypads are not available.
Common Failures
This product has encountered several issues, including problems with the 5vDC power supply, defective fuse holder assemblies, and heat-stressed components. Some units have experienced display issues related to power supply concerns.
Repair Approach
Repairs have often involved replacing the bridge rectifier to restore the +5vDC supply. Electrolytic capacitors and PCB connections have been addressed to improve power stability and connectivity. Fuse holders and damaged PCBs have also been repaired as needed.
Testing & Quality
After repairs, units undergo testing that includes verifying operation, checking DC supplies, running for extended periods, and confirming proper function of setpoints and temperature readings.
Service and repair your broken Nabertherm part
We can repair your Nabertherm model C18 in our facility. Let our skilled technicians get your Nabertherm back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
